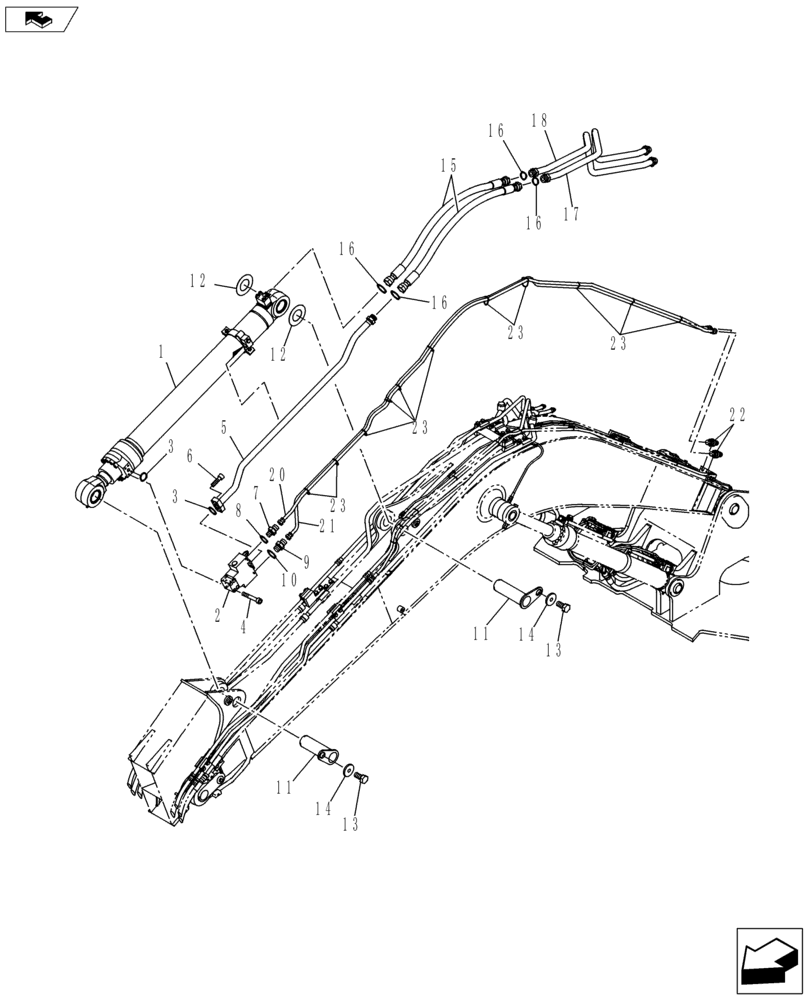

Запчасти Case CX145C SR (35.737.AE[02]) - DIPPER CYLINDER LINES - HBCV (35) - HYDRAULIC SYSTEMS

1

KNV16290

HYDRAULIC CYLINDER

1шт.

2

KRV11110

VALVE SECTION

1шт.

3

155210A1

O-RING

2шт.

4

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

5

KNV14720

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

152747A1

ADAPTER

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

10

154475A1

O-RING

1шт.

11

KNV13440

PIN

2шт.

12

160735A1

ADJUSTING PLATE

2шт.

13

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

14

157141A1

WASHER

2шт.

15

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

2шт.

16

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

17

KMV17611

PIPE

1шт.

18

KMV17621

PIPE

1шт.

20

KHJ24810

HYDRAULIC HOSE

1шт.

21

KHJ24810

HYDRAULIC HOSE

1шт.

22

162826A1

ADAPTER

2шт.

23

150067A1

MOUNTING CLIP

11шт.
