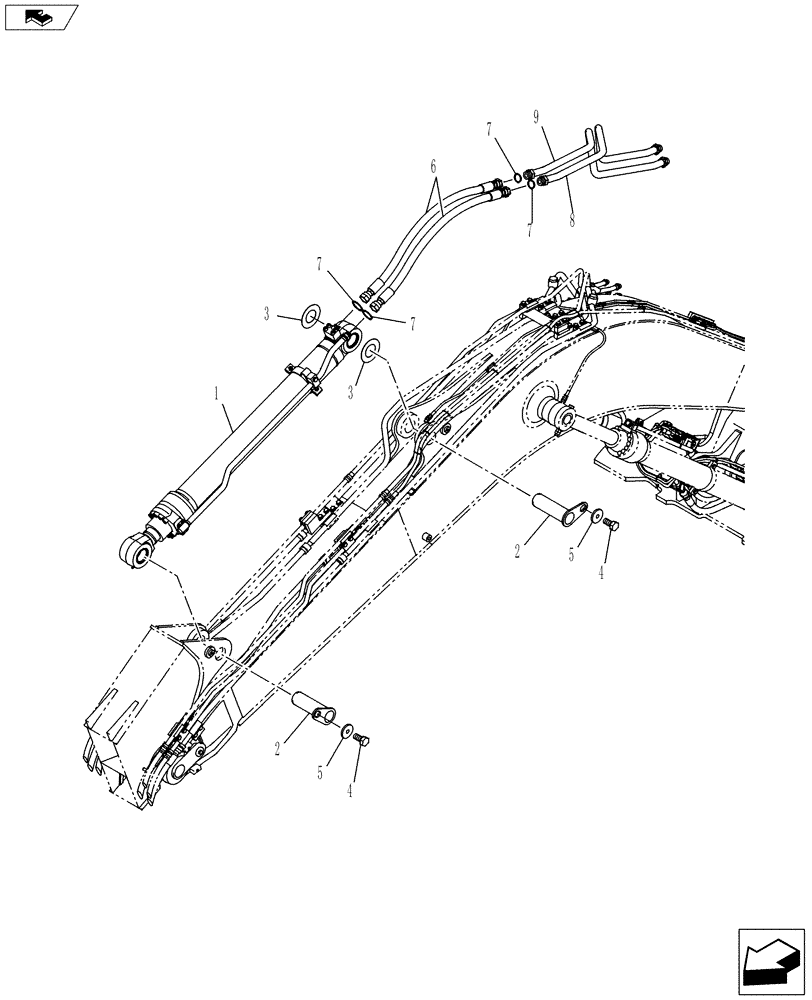

Запчасти Case CX145C SR (35.737.AE[01]) - DIPPER CYLINDER LINES - KYB (35) - HYDRAULIC SYSTEMS

1

KNV14350

HYDRAULIC CYLINDER

1шт.

1

KNV14350R

REMAN-HYD CYLINDER

CX145C SR CRAWLER EXCAVATOR TIER 4 (NA) (8/12-)

1шт.

1

KNV14350C

CORE-HYD CYLINDER

Return Number

1шт.

2

KNV13440

PIN

ATT

2шт.

3

160735A1

ADJUSTING PLATE

Shim

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Replaced by 398792

2шт.

5

157141A1

WASHER

2шт.

6

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

2шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

8

KMV17611

PIPE

1шт.

9

KMV17621

PIPE

1шт.
