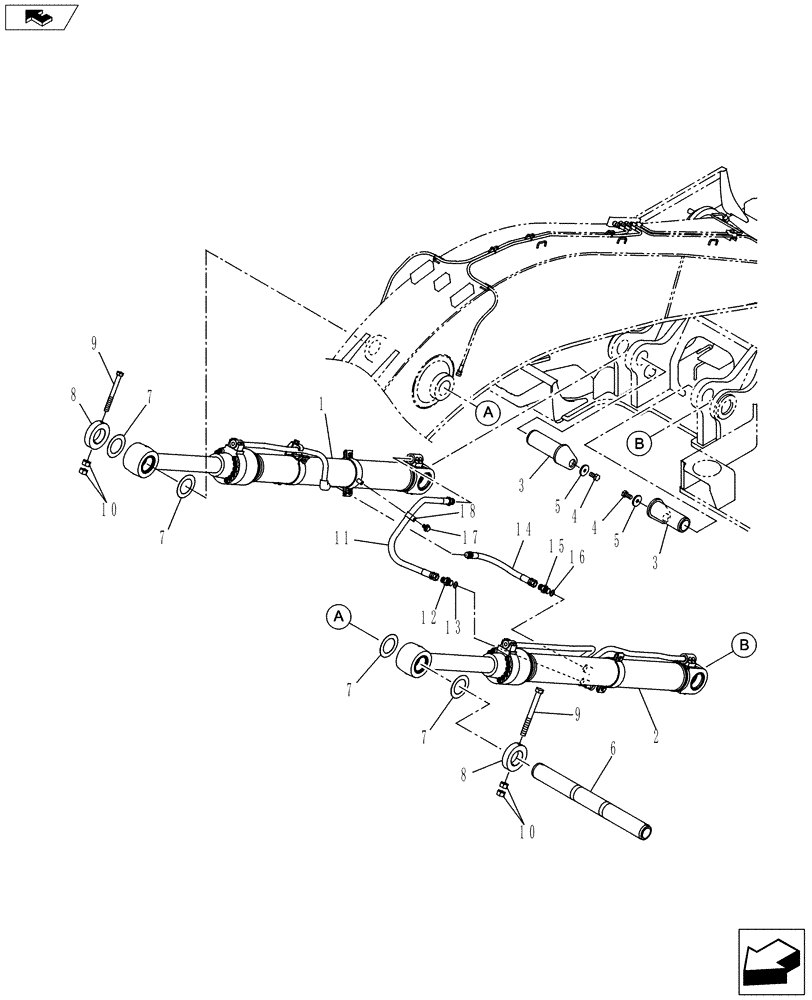

Запчасти Case CX145C SR (35.736.AC[07]) - BOOM CYLINDER LINE (EMS) (35) - HYDRAULIC SYSTEMS

1

KMV17860

HYDRAULIC CYLINDER

1шт.

2

KMV17880

HYDRAULIC CYLINDER

1шт.

3

KNV13450

PIN

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

5

157141A1

WASHER

2шт.

6

169079A1

PIN

1шт.

7

160745A1

ADJUSTING PLATE

4шт.

8

KNV1247

RING, LOCKING

2шт.

9

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

2шт.

10

829-13416

NUT,M16 x 1.5, Cl 10

4шт.

11

KMV18250

HYDRAULIC HOSE

1шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

13

154487A1

O-RING

1шт.

14

KMV18050

HYDRAULIC HOSE

1шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

16

154487A1

O-RING

1шт.

17

166345A1

BOLT

1шт.

18

KHV0472

HOSE CLAMP

1шт.
