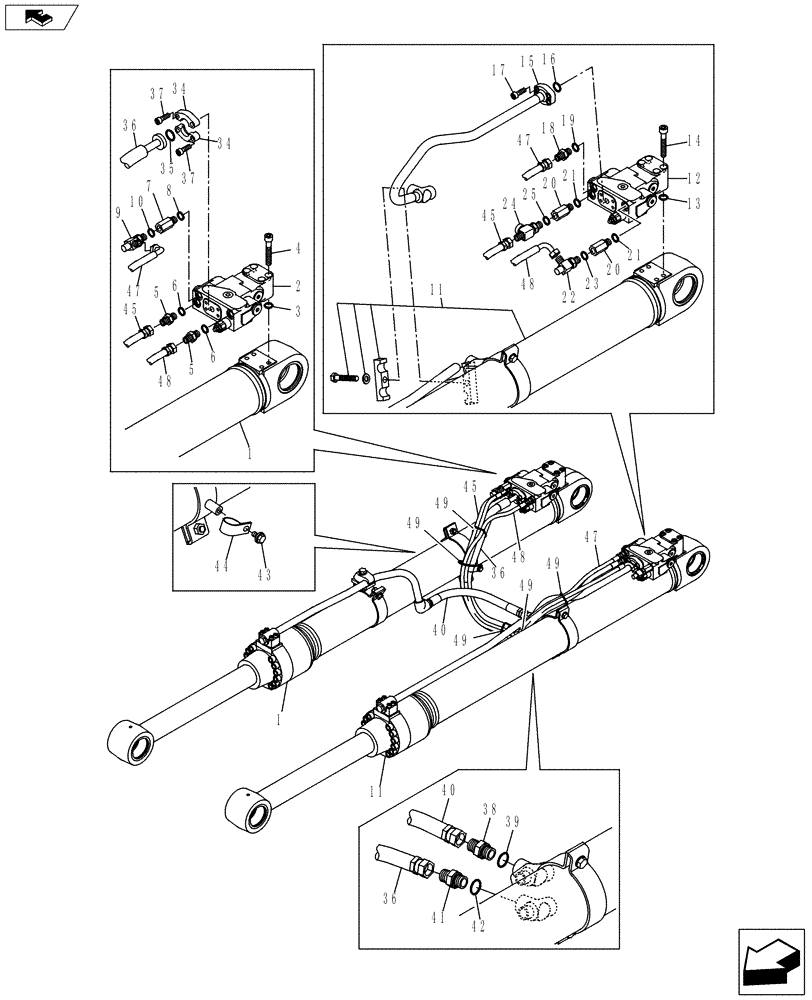

Запчасти Case CX145C SR (35.736.AC[05]) - BOOM CYLINDER LINES - EMS HBCV (35) - HYDRAULIC SYSTEMS

1

KMV17900

HYDRAULIC CYLINDER

1шт.

1

KMV17900R

REMAN-HYD CYLINDER

1шт.

1

KMV17900C

CORE-HYD CYLINDER

Return Number

1шт.

2

KNV12850

VALVE SECTION

1шт.

3

155210A1

O-RING

1шт.

4

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

162525A1

STUD

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

159497A1

TEE

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KMV17920

HYDRAULIC CYLINDER

1шт.

11

KMV17920R

REMAN-HYD CYLINDER

1шт.

11

KMV17920C

CORE-HYD CYLINDER

Return Number

1шт.

12

KNV12850

VALVE SECTION

1шт.

13

155210A1

O-RING

1шт.

14

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

15

KMV18040

PIPE

1шт.

16

161096A1

O-RING

1шт.

17

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

18

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

162525A1

STUD

2шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

22

159497A1

TEE

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

24

167666A1

FITTING

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

KHV11140

FLANGE

2шт.

35

161096A1

O-RING

1шт.

36

KMV18060

HYDRAULIC HOSE

1шт.

37

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

38

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

39

154487A1

O-RING

1шт.

40

KMV18050

HYDRAULIC HOSE

1шт.

41

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

42

154487A1

O-RING

1шт.

43

166345A1

BOLT

1шт.

44

KHV0472

HOSE CLAMP

1шт.

45

KLV13680

HOSE ASSY.

1шт.

47

KHJ17070

HYDRAULIC HOSE

1шт.

48

KHJ17070

HYDRAULIC HOSE

1шт.

49

150071A1

MOUNTING CLIP

5шт.
