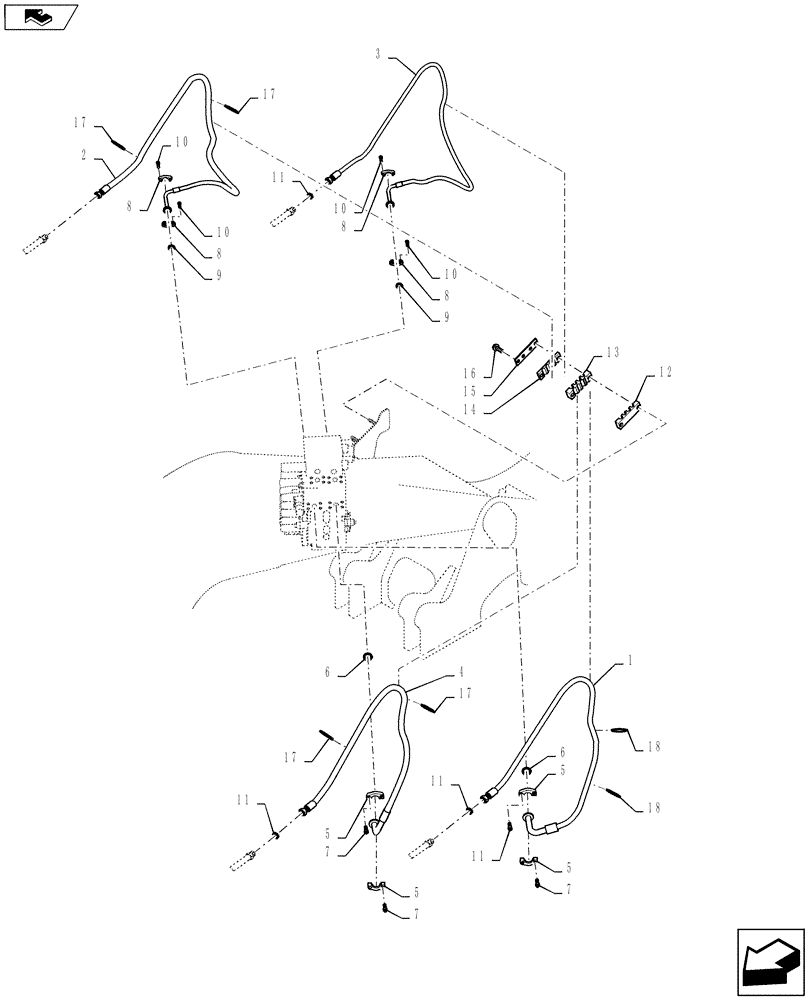

Запчасти Case CX145C SR (35.359.AE[02]) - BUCKET AND ARM LINE (OFFSET) (35) - HYDRAULIC SYSTEMS

1

KMJ17570

HYDRAULIC HOSE

Hose, Hyd, GH350-15X2110 90F+KO G

1шт.

2

KMJ17580

HYDRAULIC HOSE

Hose, Hyd, GHD350-12X2630 5+90F G

1шт.

3

KMJ16500

HYDRAULIC HOSE

L2430

1шт.

4

KMJ17550

HYDRAULIC HOSE

Hose, Hyd, SHD350-19X1950 90F+KOG

1шт.

5

153458A1

FLANGE

0.75 in Split Flange Std Press

4шт.

6

155210A1

O-RING

2шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

8

161080A1

FLANGE

Split

4шт.

9

161096A1

O-RING

2шт.

10

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SOC HD M8X25 12.9 ZND

8шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

3шт.

12

KMJ16290

CLAMP

Hose

1шт.

13

KMJ16300

CLAMP

Hose

1шт.

14

KMJ13090

CLAMP

Hose

1шт.

15

KMJ15250

PLATE

1шт.

16

166347A1

BOLT,Sems, M10 x 30mm

Bolt SEMS M10X30

2шт.

17

150071A1

MOUNTING CLIP

Cable Tie

4шт.

18

150498A1

MOUNTING CLIP

Cable Tie

2шт.
