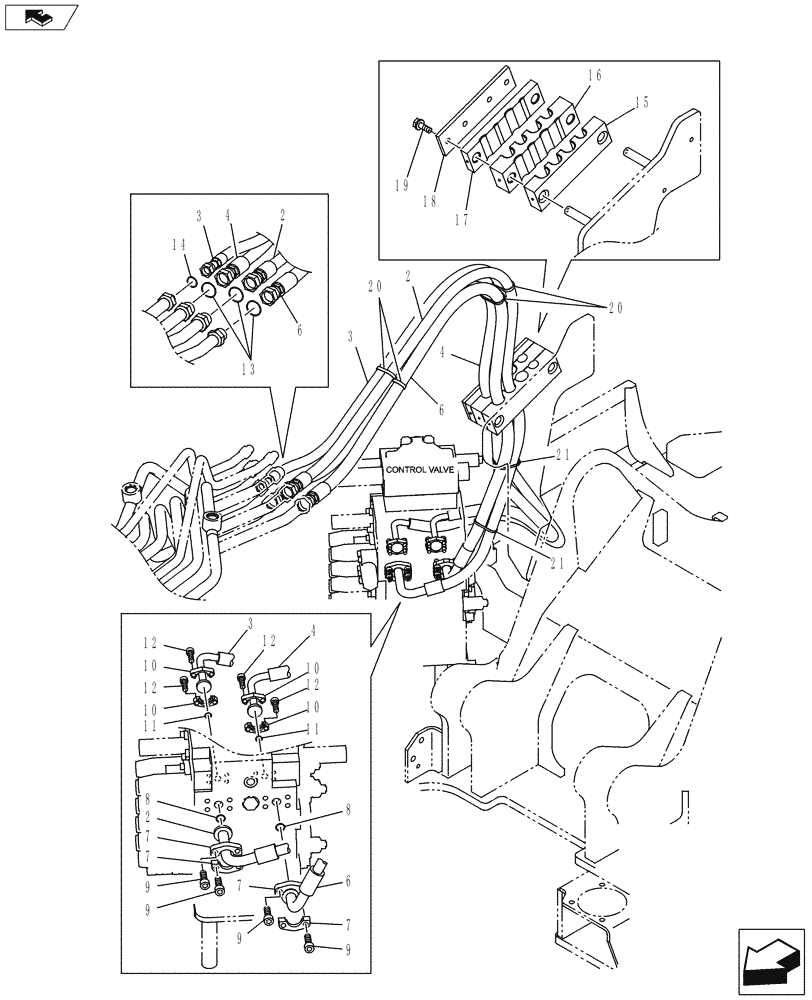

Запчасти Case CX145C SR (35.359.AE[01]) - BUCKET AND ARM LINE (35) - HYDRAULIC SYSTEMS

2

KMJ15130

HYDRAULIC HOSE

1шт.

3

KMJ16900

HYDRAULIC HOSE

1шт.

4

KMJ16500

HYDRAULIC HOSE

1шт.

6

KMJ16510

HYDRAULIC HOSE

1шт.

7

153458A1

FLANGE

4шт.

8

155210A1

O-RING

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

10

161080A1

FLANGE

4шт.

11

161096A1

O-RING

2шт.

12

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

8шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

3шт.

14

155204A1

O-RING

1шт.

15

KMJ16290

CLAMP

1шт.

16

KMJ16300

CLAMP

1шт.

17

KMJ13090

CLAMP

1шт.

18

KMJ15250

PLATE

1шт.

19

166347A1

BOLT,Sems, M10 x 30mm

2шт.

20

150071A1

MOUNTING CLIP

4шт.

21

150498A1

MOUNTING CLIP

3шт.
