(CX145C SR) - CRAWLER EXCAVATOR - TIER 4 (non-EU) (8/12-12/16)
/
(00) - GENERAL & PICTORIAL INDEX
/

(00.000.00) - PICTORIAL INDEX - MAIN SECTIONS

Запчасти Case CX145C SR (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX

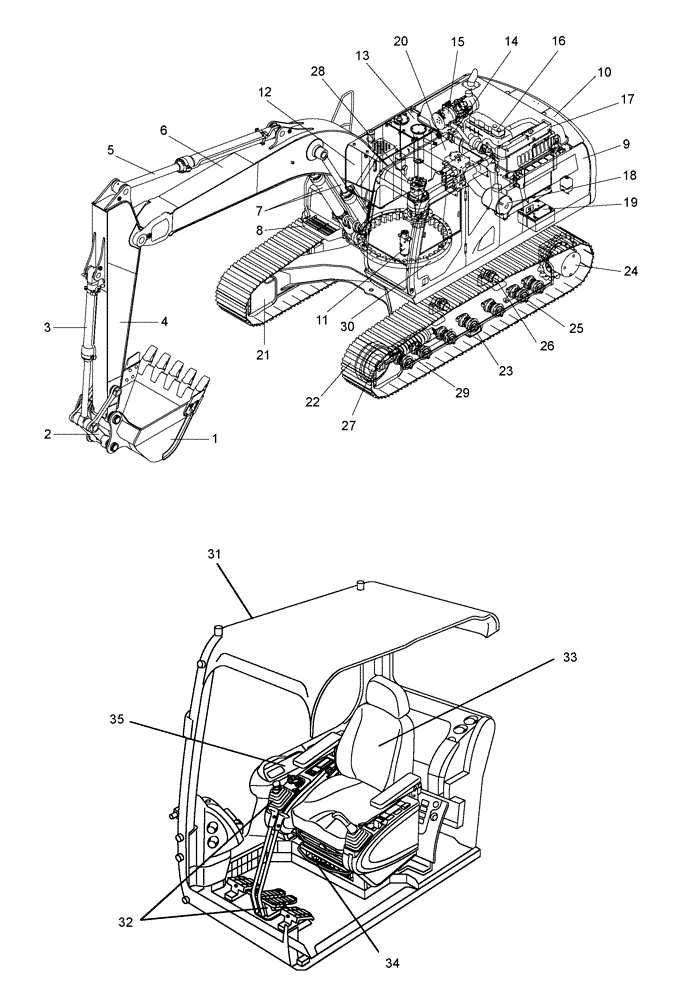

Схема запчастей Case CX145C SR - (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX
11
10
12
27
34
29
35
30
7
18
23
20
25
22
1
32
14
19
17
8
26
6
15
33
16
2
24
13
9
5
31
21
4
3
28

№

Артикул

Название

Примечание

Количество

1

BUCKET - See Figure(s) 84.100.AC

1шт.

2

BUCKET CONTROL - See Figure(s) 84.100.AC

1шт.

3

BUCKET CYLINDER - See Figure(s) 35.738.AA

1шт.

4

DIPPER - See Figure(s) 84.912.AA

1шт.

5

DIPPER CYLINDER - See Figures 35.737.AA

1шт.

6

MONOBLOCK BOOM - See Figure(s) 84.910.AA

1шт.

7

BOOM CYLINDER - See Figure(s) 35.736.AA

1шт.

8

UPPERSTRUCTURE CHASSIS - See Figure(s) 39.101.AC

1шт.

9

COWLING - See Figure(s) 90.100.AD

1шт.

10

COUNTERWEIGHT - See Figure(s) 39.140.AM

1шт.

11

SWING JOINT - See Figure(s) 35.354.AA

1шт.

12

FUEL TANK, FUEL SYSTEM - See Figure(s) 10.216.AI and BA, 10.218.AD

1шт.

13

HYDRAULIC RESERVOIR, HYDRAULIC SYSTEM - See Figure(s) 35.300.AQ and BC

1шт.

14

HYDRAULIC PUMP - See Figure(s) 35.106.AD

1шт.

15

EXHAUST ENGINE - See Figure(s) 10.254.AI

1шт.

16

ENGINE - See Figure(s) 10.001.AD

1шт.

17

RADIATOR - See Figure(s) 10.400.BE

1шт.

18

AIR FILTRATION - See Figure(s) 10.202.AB

1шт.

19

BATTERIES, ELECTRICAL SYSTEM - See Figure(s) 55.302.AG, 55.510.AB

1шт.

20

CONTROL VALVE - See Figure(s) 35.359.AB

1шт.

21

UNDERCARRIAGE - See Figure(s) 39.100.AB

1шт.

22

TRACK FOOT STEP - See Figure(s) 48.100.AD

1шт.

23

GUIDE, CHAIN - See Figure(s) 48.130.AW

1шт.

24

TRAVEL MOTOR AND REDUCTIONGEAR - See Figure(s) 35.353.AD

1шт.

25

ROLLER LOWER - See Figure(s) 48.138.AD

1шт.

26

ROLLER UPPER - See Figure(s) 48.138.AB

1шт.

27

GUIDE PULLEY - See Figure(s) 48.130.AO

1шт.

28

SWING MOTOR-DRIVE REDUCTION GEAR - See Figure(s) 35.352.AL

1шт.

29

TENSION DAMPER - See Figure(s) 48.110.AA

1шт.

30

SWING COMPONENTS, LUBRICATION CIRCUIT - See Figure(s) 39.103.99, 71.460.AF

1шт.

31

OPERATORS COMPARTMENT, CAB - See Figure(s) 90.150.AB

1шт.

32

OPERATORS COMPARTMENT, Floor Mat - See Figure(s) 90.110.BD

1шт.

33

OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Figure(s) 90.120.BB

1шт.

34

CAB AIR CONDITIONING - See Figure(s) 50.200.AA

1шт.

35

SIDE INSTRUMENT PANEL - See Figure(s) 90.110.AV

1шт.
