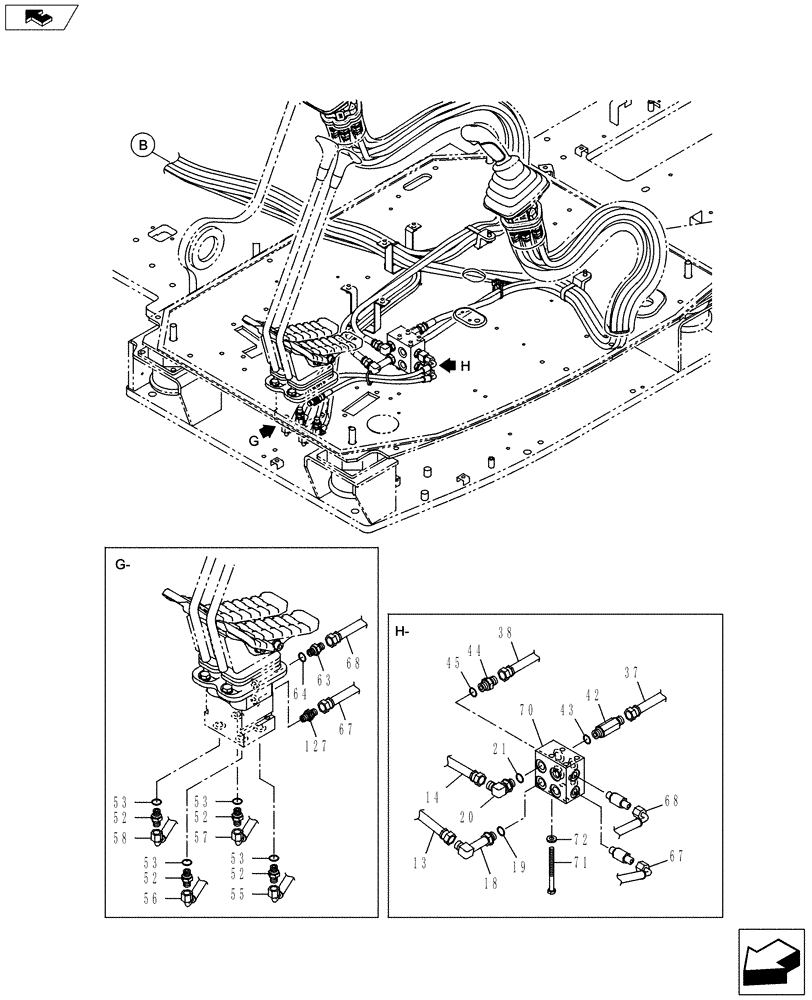

Запчасти Case CX145C SR (35.357.AK[15]) - PILOT CONTROL LINE (35) - HYDRAULIC SYSTEMS

13

KHJ24350

HOSE

1шт.

14

KHJ24350

HOSE

1шт.

18

KHJ1442

ELBOW

1шт.

19

154475A1

O-RING

1шт.

20

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

21

154475A1

O-RING

1шт.

37

KHJ2272

HOSE ASSY.

1шт.

38

KHJ2438

HOSE

1шт.

42

KAJ2351

FITTING

1шт.

43

154475A1

O-RING

1шт.

44

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

45

154475A1

O-RING

1шт.

52

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

4шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

55

KHJ2344

HOSE

1шт.

56

KHJ2380

HOSE ASSY.

1шт.

57

KHJ2524

HOSE

1шт.

63

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

KHJ2084

HOSE

1шт.

68

KHJ2084

HOSE

1шт.

70

KRJ5903

MANIFOLD

1шт.

71

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

72

153081A1

WASHER

4шт.

127

161841A1

HYD CONNECTOR

1шт.
