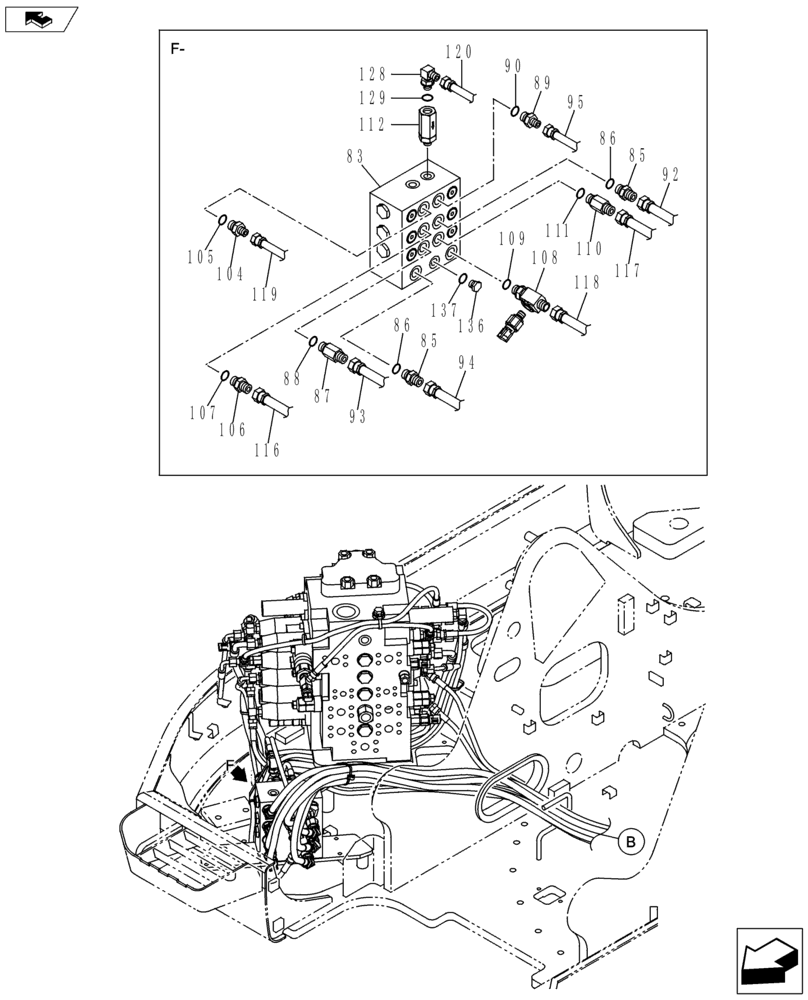

Запчасти Case CX145C SR (35.357.AK[14]) - PILOT CONTROL LINE (35) - HYDRAULIC SYSTEMS

83

KMJ12640

VALVE

1шт.

85

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

2шт.

86

154475A1

O-RING

2шт.

87

159226A1

ADAPTER

1шт.

88

154475A1

O-RING

1шт.

89

153378A1

ADAPTER

1шт.

90

154475A1

O-RING

1шт.

92

KHJ13680

HYDRAULIC HOSE

1шт.

93

KHJ13680

HYDRAULIC HOSE

1шт.

94

KHJ2809

HOSE,9.5 mm ID x 600.00 mm

1шт.

95

KHJ2086

HOSE,6.3mm ID x 700mm L

1шт.

104

153378A1

ADAPTER

1шт.

105

154475A1

O-RING

1шт.

106

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

107

154475A1

O-RING

1шт.

108

KHJ2847

ADAPTER

1шт.

109

154475A1

O-RING

1шт.

110

159226A1

ADAPTER

1шт.

111

154475A1

O-RING

1шт.

112

KHJ10790

FILTER SCREEN

1шт.

116

KHJ23950

HOSE ASSY.

1шт.

117

KHJ17700

HOSE

1шт.

118

KHJ2037

HOSE

1шт.

119

KHJ16190

HYDRAULIC HOSE

1шт.

120

KHJ2249

HOSE

1шт.

128

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

159002A1

PLUG

1шт.

137

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
