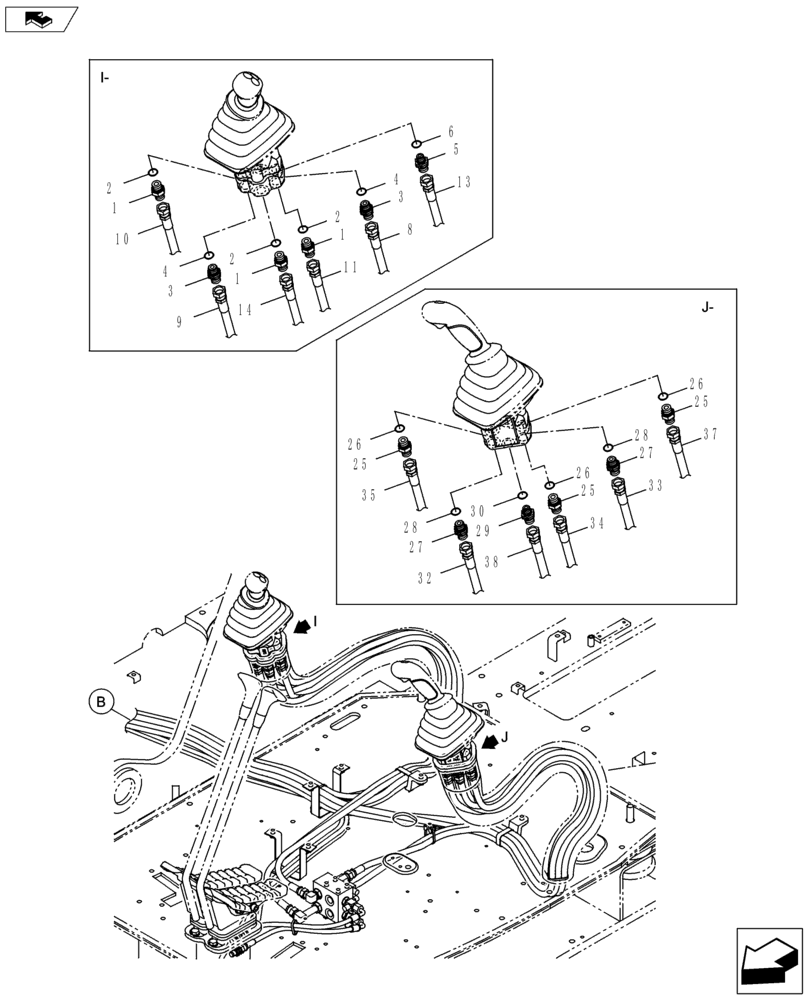

Запчасти Case CX145C SR (35.357.AK[07]) - PILOT CONTROL LINE (35) - HYDRAULIC SYSTEMS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

2

154475A1

O-RING

3шт.

3

KHJ1402

ADAPTER

4шт.

4

154475A1

O-RING

2шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KHJ2823

HYDRAULIC HOSE

1шт.

9

KSJ2124

HOSE ASSY.

1шт.

10

KHJ27150

HYDRAULIC HOSE

1шт.

11

KSJ2124

HOSE ASSY.

1шт.

13

KHJ24350

HOSE

1шт.

14

KHJ24350

HOSE

1шт.

25

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

3шт.

26

154475A1

O-RING

3шт.

27

KHJ1402

ADAPTER

2шт.

28

154475A1

O-RING

2шт.

29

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

KSJ2128

HYDRAULIC HOSE

1шт.

33

KSJ2128

HYDRAULIC HOSE

1шт.

34

KHJ2824

HYDRAULIC HOSE

1шт.

35

KHJ2824

HYDRAULIC HOSE

1шт.

37

KHJ2272

HOSE ASSY.

1шт.

38

KHJ2438

HOSE

1шт.
