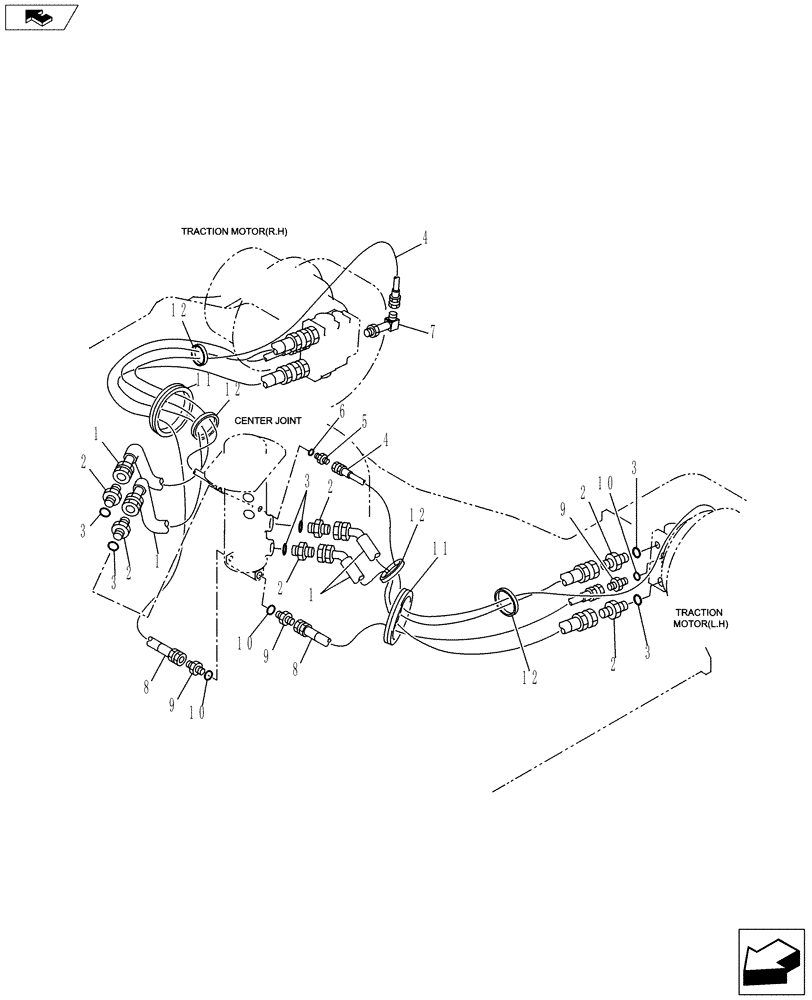

Запчасти Case CX145C SR (35.353.AD[04]) - TRACTION MOTOR LINE (35) - HYDRAULIC SYSTEMS

1

160696A1

HYDRAULIC HOSE,19.00 mm ID x 1680.00 mm

4шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

8шт.

3

154503A1

O-RING

8шт.

4

152709A1

HOSE,6.4mm ID x 2100mm L

2шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

KHJ1178

ELBOW

2шт.

8

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

2шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

4шт.

10

154487A1

O-RING

4шт.

11

150876A1

RUBBER BLOCK

2шт.

12

150071A1

MOUNTING CLIP

4шт.
