(35.310.AJ[05]) - VAR - 461863 - SOLENOID VALVE, SECOND OPTION LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (ANZ)

Запчасти Case CX145C SR (35.310.AJ[05]) - VAR - 461863 - SOLENOID VALVE, SECOND OPTION LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (ANZ) (35) - HYDRAULIC SYSTEMS

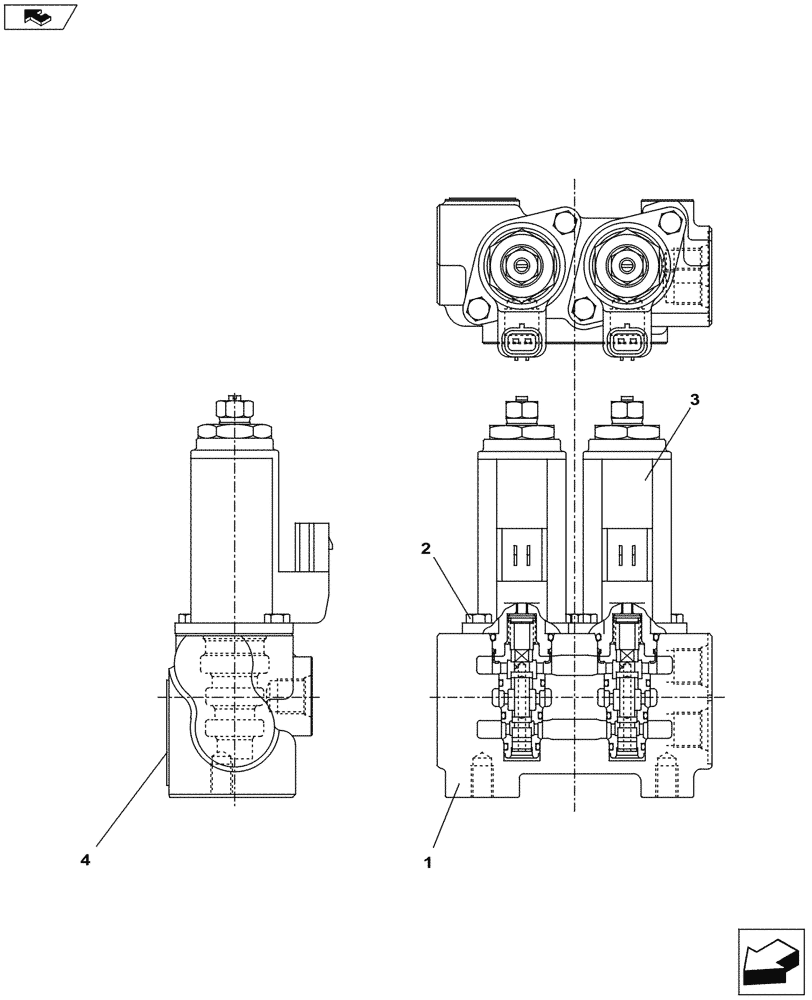

Схема запчастей Case CX145C SR - (35.310.AJ[05]) - VAR - 461863 - SOLENOID VALVE, SECOND OPTION LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (ANZ) (35) - HYDRAULIC SYSTEMS
home
home
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LW005920

BODY

1шт.

2

102R005Y012R

BOLT

4шт.

3

LJ017960

VALVE

2шт.

4

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

Выбрано товаров: 4
