(35.310.AJ[03]) - VAR - 461863 - SECOND OPTION LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (ANZ)

Запчасти Case CX145C SR (35.310.AJ[03]) - VAR - 461863 - SECOND OPTION LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (ANZ) (35) - HYDRAULIC SYSTEMS

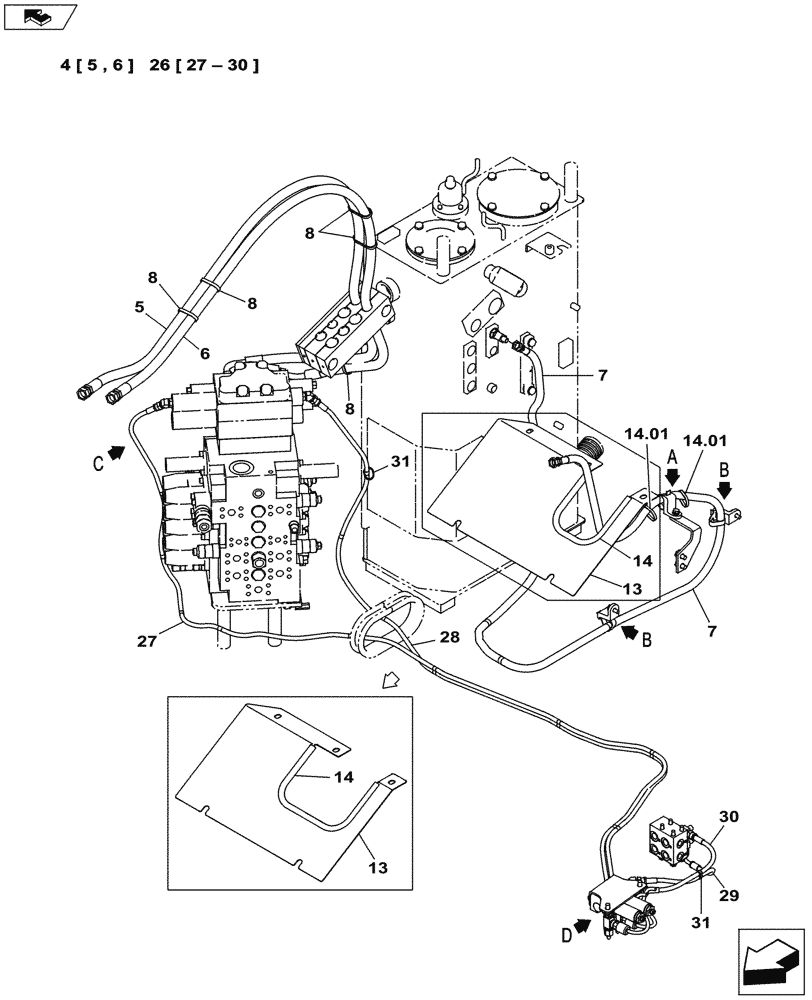

Схема запчастей Case CX145C SR - (35.310.AJ[03]) - VAR - 461863 - SECOND OPTION LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (ANZ) (35) - HYDRAULIC SYSTEMS
home
8
14
home
8
13
7
14.01
13
6
29
8
14
7
28
27
5
31
31
30
8
14.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

KMJ16930

HYDRAULIC HOSE

1шт.

6

KMJ16850

HYDRAULIC HOSE

1шт.

7

KHJ25460

HYDRAULIC HOSE

, Serial Range: -NDS6E1275

1шт.

7

KHJ30250

HYDRAULIC HOSE

, Start Serial: NDS6E1276

1шт.

8

150071A1

MOUNTING CLIP

1шт.

13

KMN14970G1

COVER

, Serial Range: -NDS6E1275

1шт.

13

KMN14971G1

COVER

, Start Serial: NDS6E1276

1шт.

14

KRN10750

SEAL PROTECTION

, Serial Range: -NDS6E1275

1шт.

14

KRN10740

SEAL PROTECTION

, Start Serial: NDS6E1276

1шт.

14.01

150496A1

MOUNTING CLIP

, Start Serial: NDSAE1276

2шт.

27

KHJ17980

HOSE

1шт.

28

KHJ24420

HYDRAULIC HOSE

1шт.

29

KHJ2351

HOSE

1шт.

30

KHJ2045

HOSE

1шт.

31

150496A1

MOUNTING CLIP

2шт.
