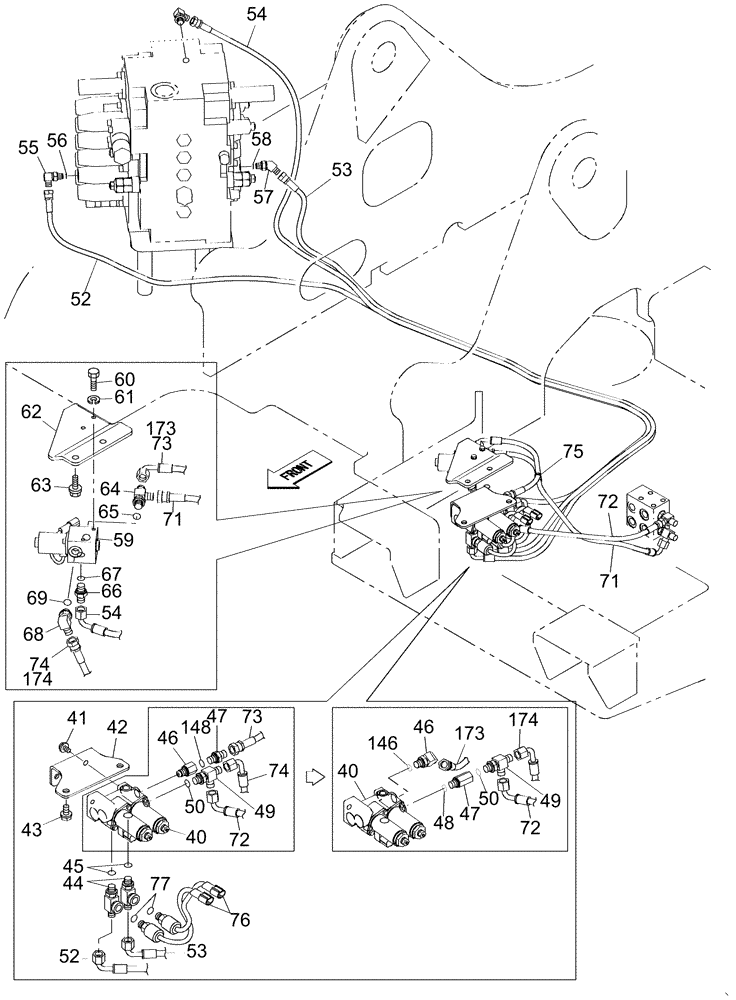

Запчасти Case CX145C SR (35.310.AJ[02]) - DOUBLE ACTING CIRCUIT (35) - HYDRAULIC SYSTEMS

40

MFJ71500

VALVE SECTION

1шт.

41

105R008Y016R

SCREW

2шт.

42

KHJ28770

BRACKET

1шт.

43

105R010Y020R

SCREW

2шт.

44

167666A1

FITTING

2шт.

45

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

46

KHJ25100

STUD

, Serial Range: -, NDS6E1245

1шт.

46

KHJ0994

ADAPTER

, Start Serial: , NDS6E1246

1шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

, Serial Range: -NDS6E1245

1шт.

47

162525A1

STUD

, Start Serial: NDS6E1246

1шт.

48

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

159497A1

TEE

1шт.

50

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

KHJ2599

HOSE

1шт.

53

KHJ2247

HOSE

1шт.

54

KHJ2197

HOSE

1шт.

55

KHJ0917

ADAPTER

1шт.

56

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ0994

ADAPTER

1шт.

58

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

162538A1

VALVE

1шт.

60

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

61

183-106VR

SPRING WASHER

2шт.

62

KRJ32940

BRACKET

1шт.

63

105R010Y020R

SCREW

2шт.

64

159497A1

TEE

1шт.

65

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

66

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

67

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ0341

ELBOW

1шт.

69

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

71

KHJ2194

HOSE,6.3mm ID x 650mm L

1шт.

72

KHJ2351

HOSE

, Serial Range: -NDS6E1245

1шт.

72

KHJ2035

HOSE

, Start Serial: NDS6E1246

1шт.

73

KHJ2342

HOSE

, Serial Range: -NDS6E1245

1шт.

74

KHJ2084

HOSE

, Serial Range: -NDS6E1245

1шт.

75

KHH0142

BAND

1шт.

76

KHR21500

PRESSURE SWITCH

2шт.

77

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

146

150960A1

O-RING,10.8mm ID x 2.4mm Width

, Start Serial: NDS6E1246

1шт.

148

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

173

KHJ2084

HOSE

, Start Serial: NDS6E1246

1шт.

174

KHJ2238

HOSE

, Start Serial: NDS6E1246

1шт.
