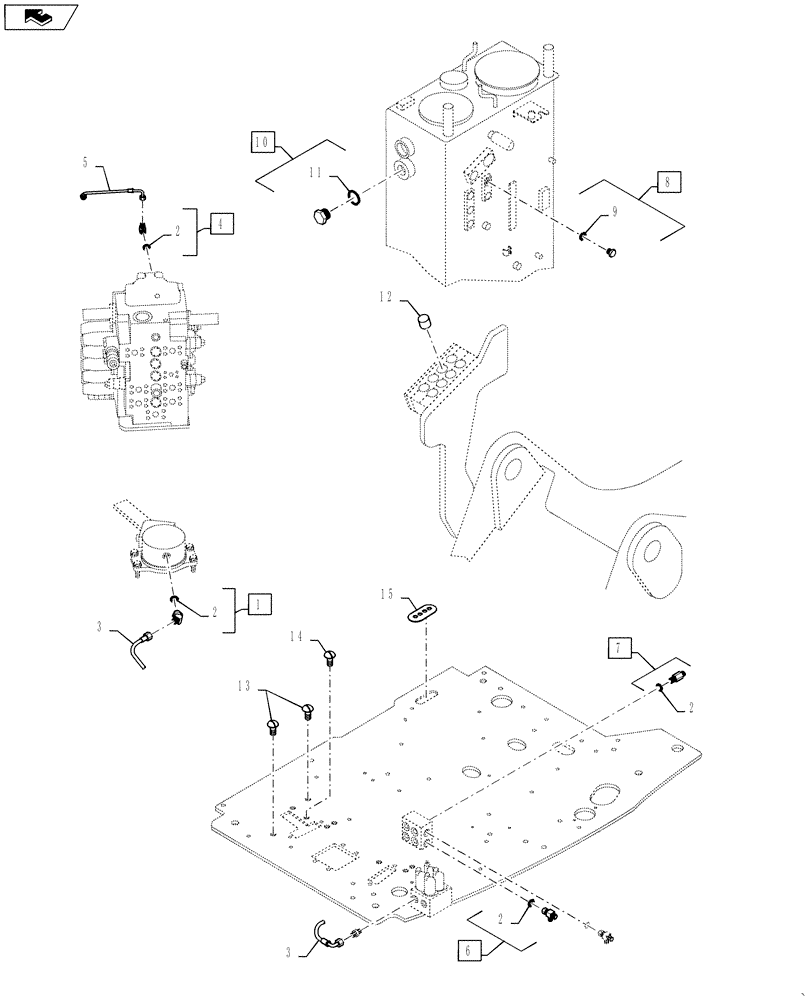

Запчасти Case CX145C SR (35.310.AA[05]) - PLUG - SB G STD (OFFSET) (35) - HYDRAULIC SYSTEMS

1

150933A1

ELBOW

45 deg, Incl 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

4шт.

3

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

Nylon

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 deg, Incl 2

1шт.

5

KHJ2342

HOSE

Nylon

1шт.

6

159497A1

TEE

Incl 2

2шт.

7

162554A1

FITTING

Long, Incl 2

2шт.

8

153105A1

PLUG

Incl 9

1шт.

9

154475A1

O-RING

1шт.

10

152924A1

PLUG

Hex, Incl 11

1шт.

11

154503A1

O-RING

1шт.

12

KMJ16780

SEAL

Seal, Cushion

2шт.

13

KHJ15060

CAP

Screw

4шт.

14

KHJ15080

CAP

Screw

6шт.

15

KHJ25560

GROMMET

Rubber

1шт.
