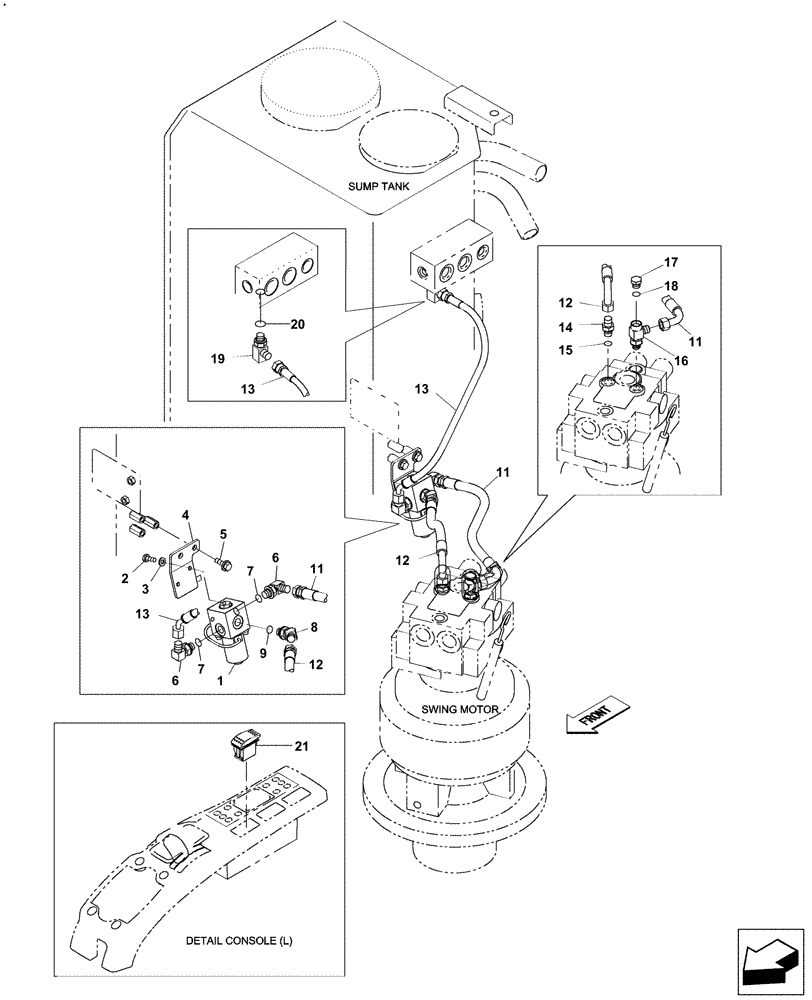

Запчасти Case CX130C (35.352.AI[01]) - FREE SWING, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

159205A1

VALVE

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

183-106VR

SPRING WASHER

2шт.

4

KNJ12640

BRACKET

1шт.

5

167182A1

BOLT,Sems, M8 x 25mm

2шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl. 7

2шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

150933A1

ELBOW

Assy, Incl. 9

1шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KLJ0577

HOSE ASSY.

1шт.

12

KNJ12620

HOSE ASSY.

1шт.

13

KHJ12100

HYDRAULIC HOSE

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl. 15

1шт.

15

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

KHJ11640

ORIFICE

1шт.

17

159002A1

PLUG

Assy, Incl. 18

1шт.

18

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

KHJ2773

TEE

Assy, Incl. 20

1шт.

20

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

KHR16140

TOGGLE SWITCH

1шт.
