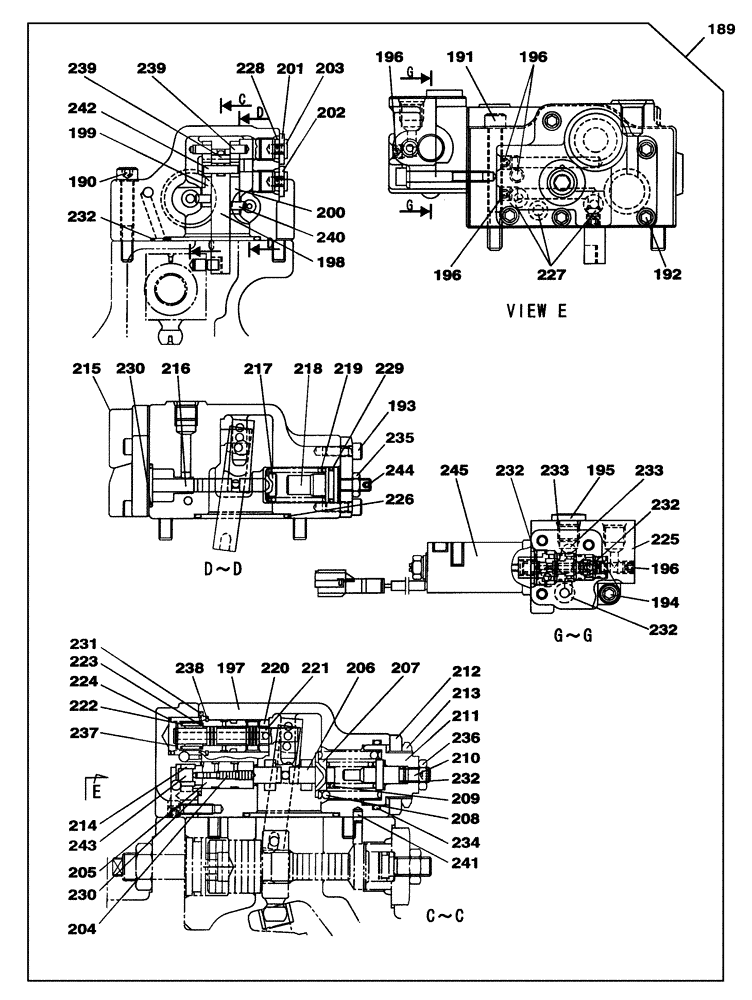

Запчасти Case CX130C (35.106.AD[11]) - HYDRAULIC PUMP - SECOND OPTION (35) - HYDRAULIC SYSTEMS

189

LJ017120

REGULATOR

Incl 190 - 245

1шт.

190

108R008Z050N

BOLT

2шт.

191

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

2шт.

192

861-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

5шт.

193

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

194

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

4шт.

195

LK00015

PLUG

2шт.

196

LK00003

PLUG

8шт.

197

NSS

NOT SOLD SEPARAT

Case, Incl in 189

1шт.

198

NSS

NOT SOLD SEPARAT

Lever, Incl in 189

1шт.

199

NSS

NOT SOLD SEPARAT

Lever, Incl in 189

1шт.

200

NSS

NOT SOLD SEPARAT

Lever, Incl in 189

1шт.

201

NSS

NOT SOLD SEPARAT

Plug, Incl in 189

1шт.

202

NSS

NOT SOLD SEPARAT

Plug, Incl in 189

1шт.

203

NSS

NOT SOLD SEPARAT

Plug, Incl in 189

1шт.

204

NSS

NOT SOLD SEPARAT

Piston, Incl in 189

1шт.

205

NSS

NOT SOLD SEPARAT

Case, Incl in 189

1шт.

206

NSS

NOT SOLD SEPARAT

Rod, Incl in 189

2шт.

207

NSS

NOT SOLD SEPARAT

Seat, Incl in 189

1шт.

208

NSS

NOT SOLD SEPARAT

Spring, Incl in 189

1шт.

209

NSS

NOT SOLD SEPARAT

Spring, Incl in 189

1шт.

210

NSS

NOT SOLD SEPARAT

Seat, Spring, Incl in 189

1шт.

211

NSS

NOT SOLD SEPARAT

Screw, Incl in 189

1шт.

212

NSS

NOT SOLD SEPARAT

Cover, Incl in 189

1шт.

213

NSS

NOT SOLD SEPARAT

Nut, Incl in 189

1шт.

214

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 189

1шт.

215

NSS

NOT SOLD SEPARAT

Cover, Incl in 189

1шт.

216

NSS

NOT SOLD SEPARAT

Piston, Incl in 189

1шт.

217

NSS

NOT SOLD SEPARAT

Seat, Spring, Incl in 189

1шт.

218

NSS

NOT SOLD SEPARAT

Seat, Spring, Incl in 189

1шт.

219

NSS

NOT SOLD SEPARAT

Spring, Incl in 189

1шт.

220

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 189

1шт.

221

NSS

NOT SOLD SEPARAT

Spool, Incl in 189

1шт.

222

NSS

NOT SOLD SEPARAT

Seat, Spring, Incl in 189

1шт.

223

NSS

NOT SOLD SEPARAT

Spring, Incl in 189

1шт.

224

NSS

NOT SOLD SEPARAT

Spring, Incl in 189

1шт.

225

NSS

NOT SOLD SEPARAT

Case, Incl in 189

1шт.

227

LE015270

O-RING

1шт.

227

LE013470

O-RING

7шт.

228

LE014730

O-RING

2шт.

229

154489A1

O-RING

1шт.

230

LE00608

O-RING

2шт.

231

LE013380

O-RING

1шт.

232

LE013540

O-RING

6шт.

233

LE013410

O-RING

2шт.

234

LE015280

O-RING

1шт.

235

LA00065

JAM NUT

1шт.

236

LA010640

JAM NUT

1шт.

237

800-1110

SNAP RING,M10, Ext

1шт.

238

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 189

1шт.

239

NSS

NOT SOLD SEPARAT

Pin, Incl in 189

1шт.

240

NSS

NOT SOLD SEPARAT

Pin, Incl in 189

1шт.

241

NSS

NOT SOLD SEPARAT

Pin, Incl in 189

1шт.

242

NSS

NOT SOLD SEPARAT

Pin, Incl in 189

2шт.

243

NSS

NOT SOLD SEPARAT

Pin, Incl in 189

1шт.

244

LA00759

BOLT,Hex Skt Hd

1шт.

245

LJ00684

SOLENOID VALVE

1шт.
