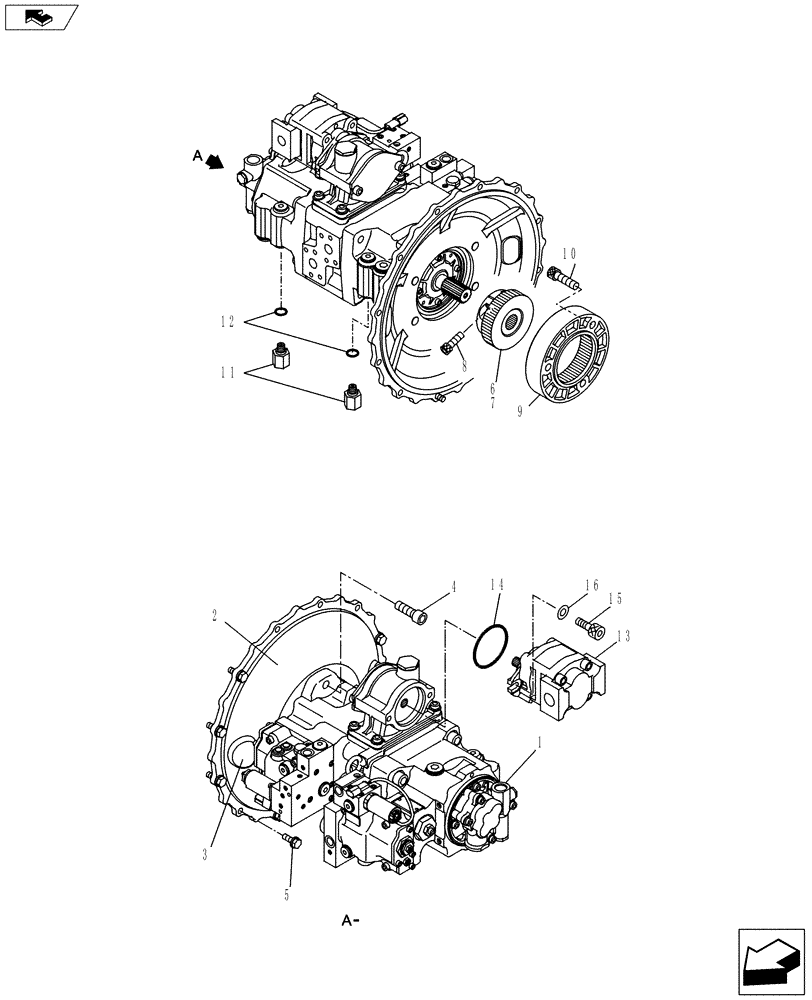

Запчасти Case CX130C (35.106.AD[02]) - HYDRAULIC PUMP - COUPLING (35) - HYDRAULIC SYSTEMS

1

KNJ11861

HYDRAULIC PUMP

1шт.

2

KNJ11750

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

108R016Y045R

BOLT

2шт.

5

166347A1

BOLT,Sems, M10 x 30mm

12шт.

6

KNJ10641

FLEXIBLE COUPLING

Coupling

1шт.

7

KHJ2656

GROMMET

Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Incl in 6

1шт.

9

NSS

NOT SOLD SEPARAT

Flange, Incl in 6

1шт.

10

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

3шт.

11

KHJ18180

STUD

Incl 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

13

KNJ10650

HYDRAULIC PUMP

1шт.

13

KNJ10650R

REMAN-HYD PUMP

CX130C CRAWLER EXCAVATOR - TIER 4 (NA) (4/12-)

1шт.

13

KNJ10650C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

154697A1

O-RING

1шт.

15

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

16

150409A1

WASHER

2шт.
