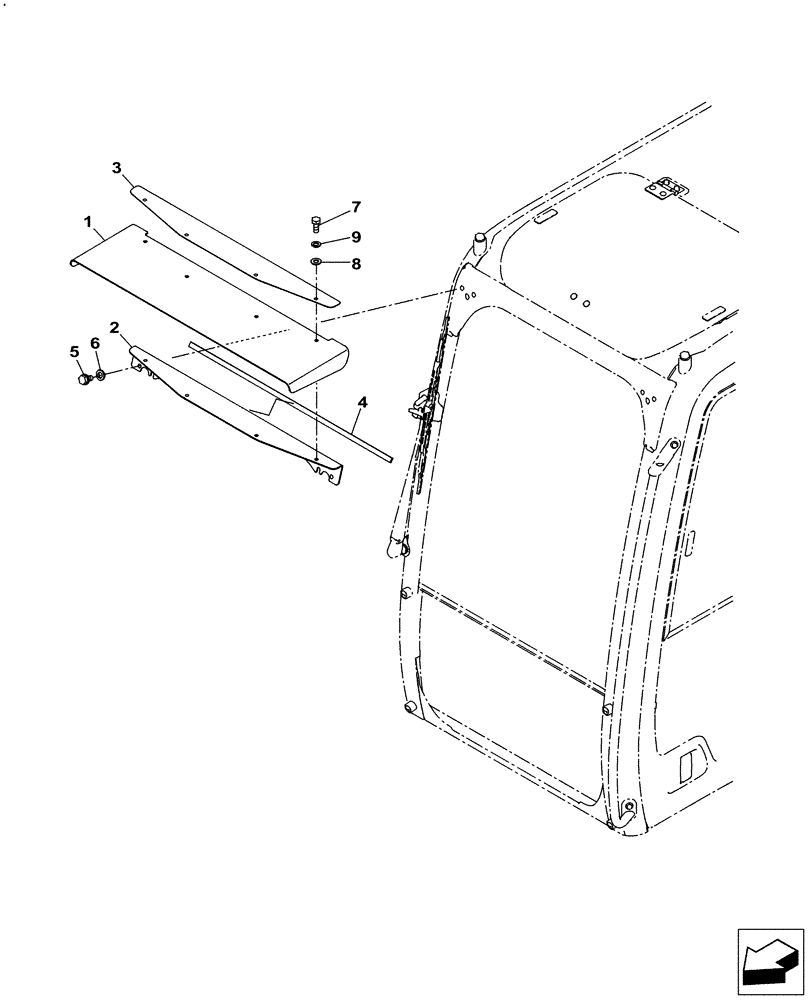

Запчасти Case CX130C (90.151.AE[01]) - RAIN REFLECTOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN11901

REFLECTOR

1шт.

2

KHN29120

BRACKET

1шт.

3

KHN29110

HOLDER

1шт.

4

KHJ13590

SEAL

1шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

183-108VR

SPRING WASHER

4шт.
