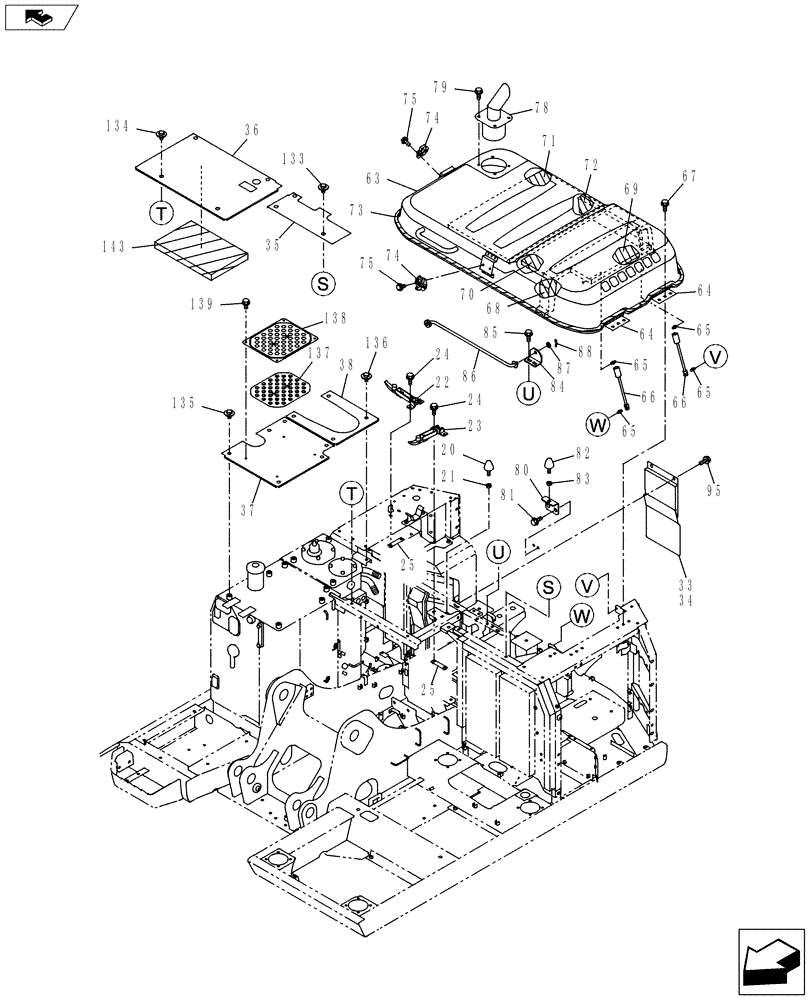

Запчасти Case CX130C (90.100.AD[03]) - HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS

20

151108A1

STOP

1шт.

21

KBH0446

NUT

1шт.

22

152423A1

LATCH

1шт.

23

150790A1

LATCH

1шт.

24

166350A1

BOLT

4шт.

25

KHN24200

PLATE

2шт.

34

KNN12750

COVER

1шт.

35

KNN12820G1

TOP COVER

1шт.

36

KNN11310G1

COVER

1шт.

37

KNN11250G1

COVER

1шт.

38

KLN11110G1

COVER

1шт.

63

KNN12590G1

ENGINE HOOD

1шт.

64

KHN27590

HINGE

2шт.

65

KHN24170

BALL

4шт.

66

KHN32560

DAMPER

2шт.

67

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

68

KNN13160

SEAL

1шт.

69

KNN13320

INSULATION

1шт.

70

KNN13330

INSULATION

1шт.

71

KNN13340

INSULATION

1шт.

72

KNN13350

INSULATION

1шт.

73

KHN2064

SEAL PROTECTION

1шт.

74

150785A1

STOP LOCK

2шт.

75

166350A1

BOLT

4шт.

78

KNN13150

PIPE FITTING

1шт.

79

166351A1

BOLT,Sems, M10 x 20mm

4шт.

80

KLN11990

BRACKET

1шт.

81

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

82

151108A1

STOP

1шт.

83

KBH0446

NUT

1шт.

84

KNN12780

BRACKET

1шт.

85

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

86

KNN12790

STAY

1шт.

87

157548A1

WASHER

1шт.

88

KHN2373

PIN, SPLIT (COTTER)

1шт.

95

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

133

KHN12020

BOLT,Spcl

3шт.

134

KHN12020

BOLT,Spcl

4шт.

135

KHN12020

BOLT,Spcl

6шт.

136

KHN12020

BOLT,Spcl

4шт.

137

KHN10940

RUBBER PAD

2шт.

138

KHN13510B1

COVER

2шт.

139

KHN13540

BOLT,Spcl

8шт.

143

KSN14350

INSULATION

1шт.
