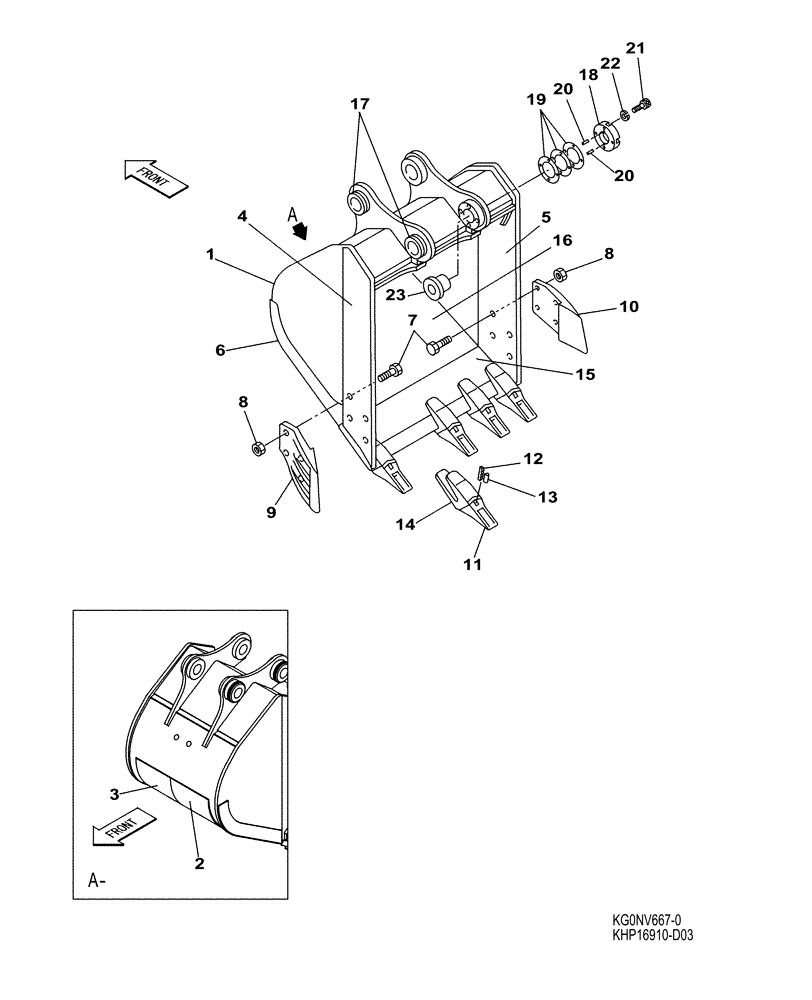

Запчасти Case CX130C (84.100.AB[04]) - VAR - 461043 - BUCKET (0,65M³ X 1192MM) (84) - BOOMS, DIPPERS & BUCKETS

1

KNV27170

BUCKET

Bucket, 0.65M3x1192mm, ASSY, Incl 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

7

102R024Y060N

BOLT

8шт.

8

829-1324

NUT

8шт.

9

KNV15550

CUTTER

Side

1шт.

10

KNV15560

CUTTER

Side

1шт.

11

KNV0438

BUCKET TOOTH POINT

5шт.

12

KHV11300

PIN

Locking

5шт.

13

KHV11310

LOCK

Rubber Pin

5шт.

14

KNV0462

ADAPTER

5шт.

15

KNV17940

Lip Bucket

1шт.

16

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Collar, incl in 1

2шт.

18

KNV0467

PLATE

Plate, Incl in 1

1шт.

19

KNV0468

SHIM

6шт.

20

837-6020

DOWEL,6mm ID x 20mm L

2шт.

21

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

4шт.

22

892-11012

LOCK WASHER,M12

4шт.

23

KNV1131

BUSHING

1шт.
