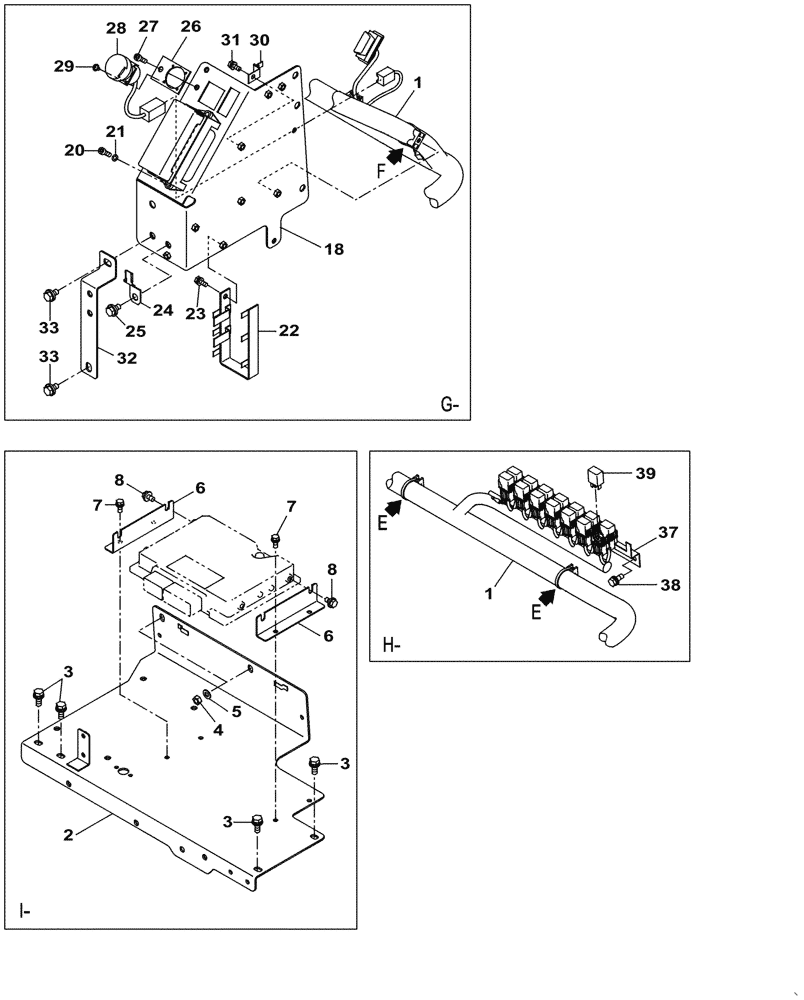

Запчасти Case CX130C (55.510.AB[06]) - WIRE HARNESS, CAB (55) - ELECTRICAL SYSTEMS

1

KHR30840

WIRE HARNESS

1шт.

2

KHR28440

BRACKET, SUPPORTING

1шт.

3

105R008Y016R

SCREW

4шт.

4

162R008SR

SPRING WASHER

2шт.

5

182-008SR

WASHER

2шт.

6

KHR28500

BRACKET, SUPPORTING

2шт.

7

KHR1253

BOLT,M6 x 16mm

4шт.

8

105R008Y016R

SCREW

4шт.

18

KHR28450

BRACKET, SUPPORTING

1шт.

20

108R006Y020R

BOLT

2шт.

21

892-11006

LOCK WASHER,M6

2шт.

22

KHR28480

BRACKET, SUPPORTING

1шт.

23

KHR1253

BOLT,M6 x 16mm

1шт.

24

KHR3748

COLLAR

1шт.

25

105R008Y016R

SCREW

1шт.

26

KHR28580

BRACKET, SUPPORTING

1шт.

27

KHR1253

BOLT,M6 x 16mm

1шт.

28

KHR19970

WIRE HARNESS

1шт.

29

162061A1

SCREW,Pan Hd, M3 x 8mm

4шт.

30

KHR1957

CLIP

1шт.

31

KHR1253

BOLT,M6 x 16mm

1шт.

32

KHR28460

BRACKET, SUPPORTING

1шт.

33

105R008Y016R

SCREW

2шт.

37

KHR24760

BRACKET, SUPPORTING

1шт.

38

KHR1253

BOLT,M6 x 16mm

2шт.

39

KHR3802

RELAY

14шт.
