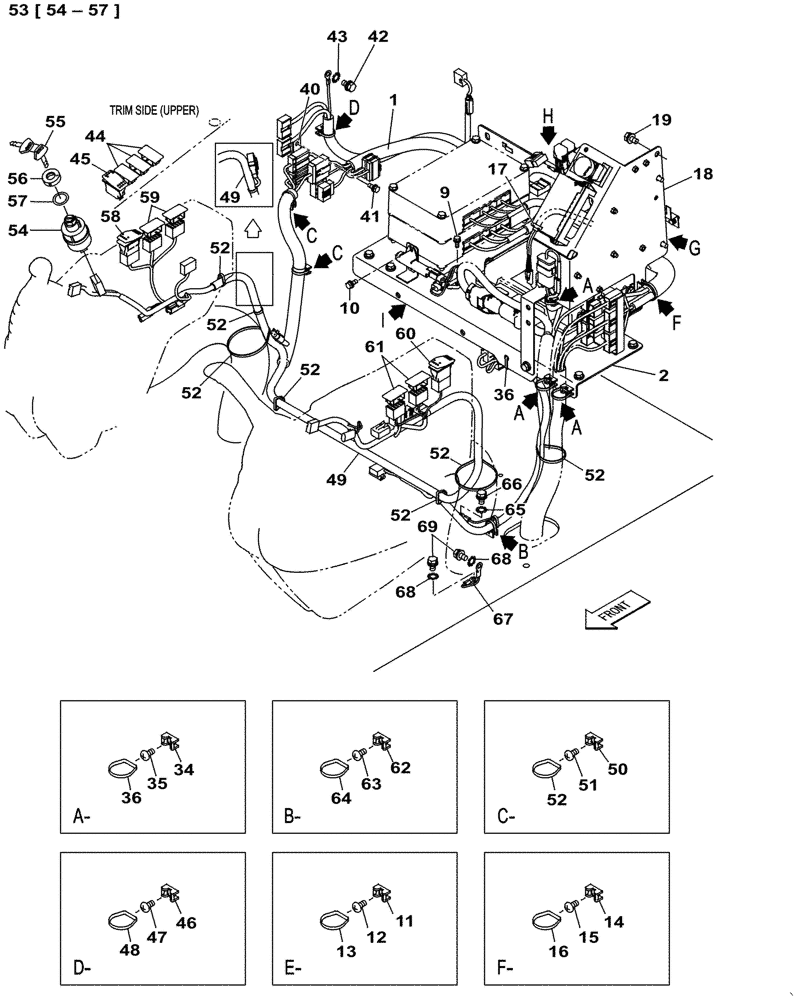

Запчасти Case CX130C (55.510.AB[05]) - WIRE HARNESS, CAB (55) - ELECTRICAL SYSTEMS

1

KHR30840

WIRE HARNESS

1шт.

2

KHR28440

BRACKET, SUPPORTING

1шт.

9

KHR1831

BOLT

2шт.

10

KHR1253

BOLT,M6 x 16mm

2шт.

11

150860A1

COLLAR

2шт.

12

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

13

KHH0142

BAND

2шт.

14

150860A1

COLLAR

2шт.

15

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

16

KHH0142

BAND

2шт.

17

KHH0142

BAND

1шт.

18

KHR28450

BRACKET, SUPPORTING

1шт.

19

105R008Y016R

SCREW

3шт.

34

150860A1

COLLAR

3шт.

35

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

3шт.

36

KHH0142

BAND

4шт.

40

KHR28490

BRACKET, SUPPORTING

1шт.

41

KHR1253

BOLT,M6 x 16mm

1шт.

42

167518A1

BOLT

1шт.

43

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

44

KHR10390

CAP

3шт.

45

KHR28540

SWITCH

Horn

1шт.

46

150860A1

COLLAR

1шт.

47

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

48

KHH0142

BAND

1шт.

49

KHR30860

WIRE HARNESS

, Serial Range: -C10001

1шт.

49

KHR30861

WIRE HARNESS

, Start Serial: D1001

1шт.

50

150860A1

COLLAR

2шт.

51

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

52

KHH0142

BAND

7шт.

53

KHR20050

IGNITION SWITCH

1шт.

54

KHR3078

IGNITION SWITCH

1шт.

55

KHR20070

IGNITION KEY

1шт.

56

KHR3080

CAP

1шт.

57

KHR3081

WASHER

1шт.

58

KHR15850

ROCKER SWITCH

Travel Alarm

1шт.

59

KHR10390

CAP

2шт.

60

KHR28530

SWITCH

Emergency Stop

1шт.

61

KHR10390

CAP

1шт.

62

150860A1

COLLAR

1шт.

63

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

64

KHH0142

BAND

1шт.

65

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

66

167518A1

BOLT

1шт.

67

KHR11240

GROUND CABLE

1шт.

68

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

69

167518A1

BOLT

2шт.
