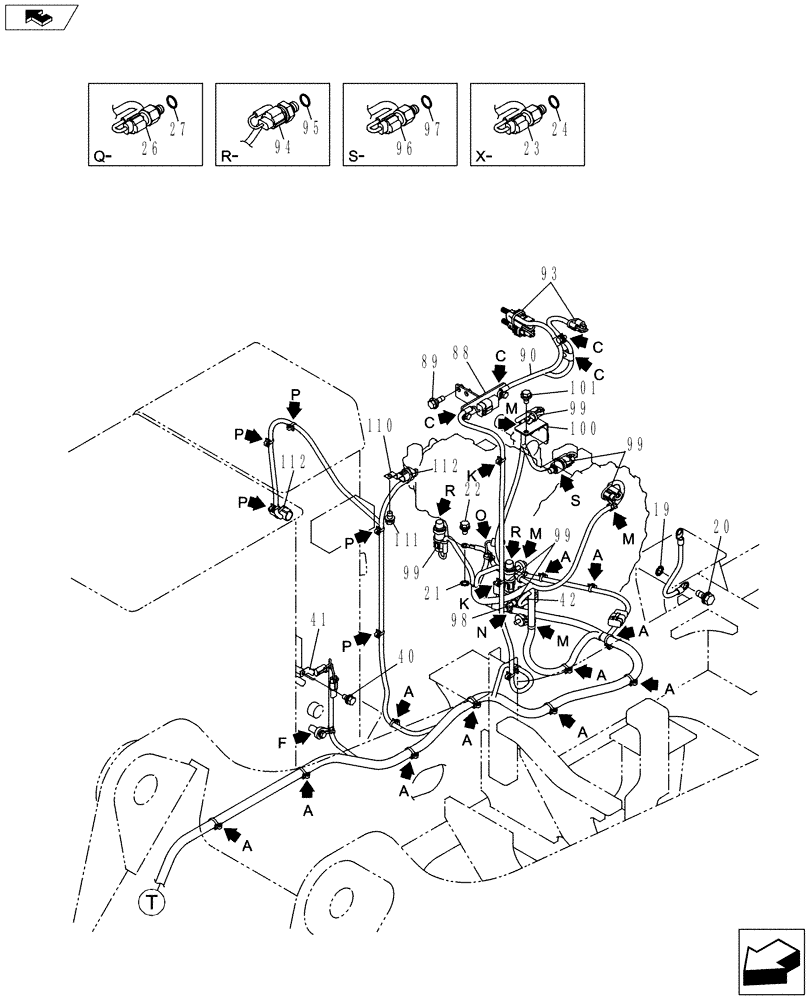

Запчасти Case CX130C (55.510.AB[03]) - ELECTRIC PARTS AND WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KNR12380

WIRE HARNESS

1шт.

10

KHR10220

MOUNTING CLIP

42шт.

11

150496A1

MOUNTING CLIP

42шт.

12

158962A1

CLIP

2шт.

19

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

20

KHJ2298

BOLT,Spcl

1шт.

21

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

22

167518A1

BOLT

1шт.

23

KHR26940

SENSOR

5MPA, Pressure

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

KHR26940

SENSOR

5MPA, Pressure

6шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

40

158962A1

CLIP

1шт.

41

167518A1

BOLT

1шт.

42

150496A1

MOUNTING CLIP

1шт.

88

KNR12530

BRACKET

1шт.

89

167182A1

BOLT,Sems, M8 x 25mm

2шт.

90

KHR32130

WIRE HARNESS

1шт.

93

150496A1

MOUNTING CLIP

2шт.

94

KHR10290

SENSOR

Pressure

2шт.

95

154483A1

O-RING

2шт.

96

KHR26940

SENSOR

5MPA, Pressure

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

99

150496A1

MOUNTING CLIP

6шт.

100

KLR10230

BRACKET

1шт.

101

166345A1

BOLT

1шт.
