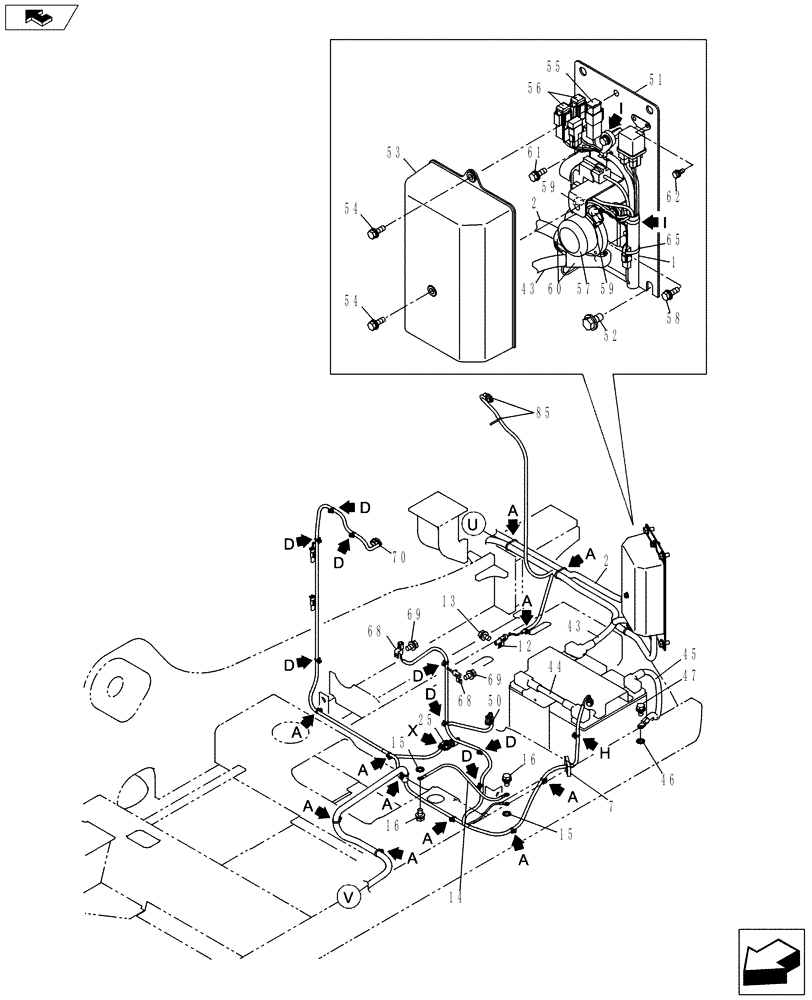

Запчасти Case CX130C (55.510.AB[02]) - ELECTRIC PARTS AND WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KNR12380

WIRE HARNESS

1шт.

2

KHR27180

ELECTRIC CABLE

1шт.

12

158962A1

CLIP

2шт.

13

167518A1

BOLT

2шт.

14

KHR28730

GROUND CABLE

1шт.

15

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

16

167518A1

BOLT

2шт.

25

150496A1

MOUNTING CLIP

1шт.

KNR12640

POS BATTERY CABLE

Used with Battery Master Switch

1шт.

43

KHR13910

POS BATTERY CABLE

1шт.

44

KHR15070

NEG BATTERY CABLE

1шт.

45

KHR13920

POS BATTERY CABLE

1шт.

46

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

47

167518A1

BOLT

1шт.

50

150496A1

MOUNTING CLIP

1шт.

51

KHR24940

BRACKET

1шт.

52

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

53

KHR19120

COVER

1шт.

54

KHJ1215

BOLT,Spcl

2шт.

55

159902A1

FUSE

65A fuse - starter,

1шт.

56

KHR3850

FUSE

50 Amp

2шт.

57

159897A1

RELAY

Battery

1шт.

58

KHR2309

BOLT,Spcl

2шт.

59

159171A1

CAP

2шт.

60

162212A1

TERMINAL CONNECTOR

2шт.

61

KHJ1215

BOLT,Spcl

2шт.

62

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

65

150496A1

MOUNTING CLIP

1шт.

68

158962A1

CLIP

2шт.

69

167518A1

BOLT

2шт.

70

150496A1

MOUNTING CLIP

2шт.

85

150496A1

MOUNTING CLIP

5шт.
