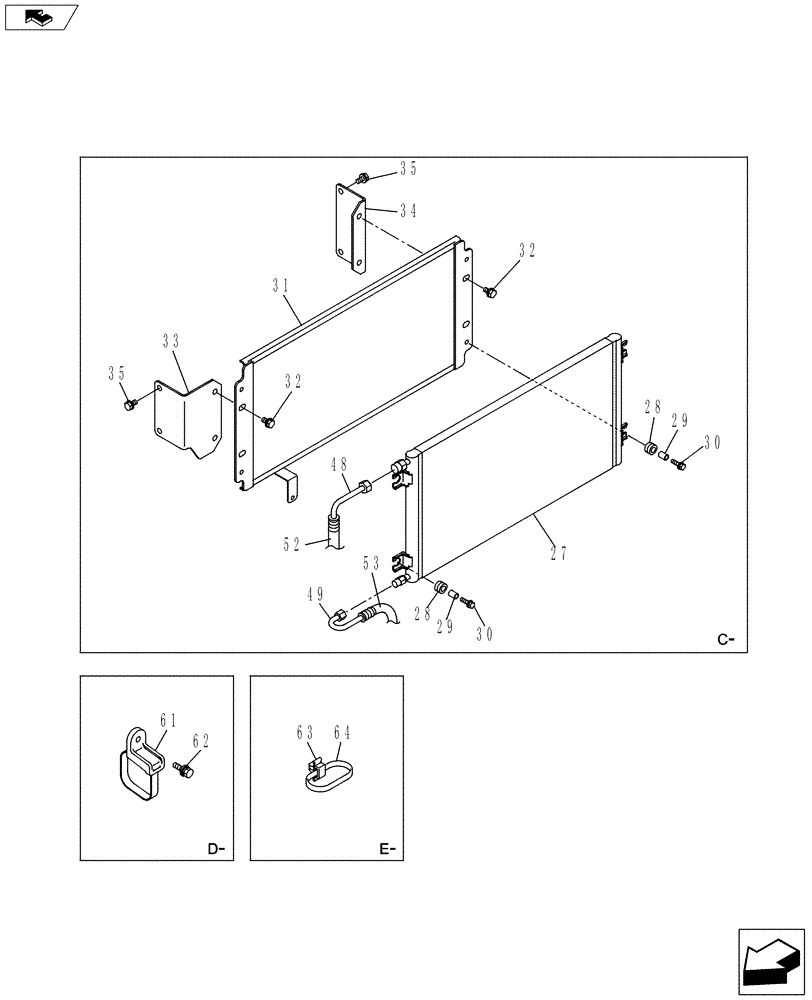

Запчасти Case CX130C (50.200.AA[04]) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

27

KHR13071

CONDENSER

Incl 28 - 29

1шт.

28

KHR25150

PLASTIC RING

4шт.

29

KHR25160

COLLAR

4шт.

30

KHR2309

BOLT,Spcl

4шт.

31

KNR10530

COVER

1шт.

32

166351A1

BOLT,Sems, M10 x 20mm

4шт.

33

KLR10210

BRACKET

1шт.

34

KLR10220

BRACKET

1шт.

35

166351A1

BOLT,Sems, M10 x 20mm

4шт.

48

KHR32280

HOSE

1шт.

49

KHR32270

HOSE

1шт.

52

NSS

NOT SOLD SEPARAT

Sleeve, Protective, D19 L2700, Incl in KG0NR258

1шт.

53

157768A1

PLASTIC-RUBBER TUBE

Corrugated

1шт.

61

KHR2581

CLAMP

5шт.

62

KHJ1215

BOLT,Spcl

5шт.

63

KHR10220

MOUNTING CLIP

3шт.

64

150496A1

MOUNTING CLIP

8шт.
