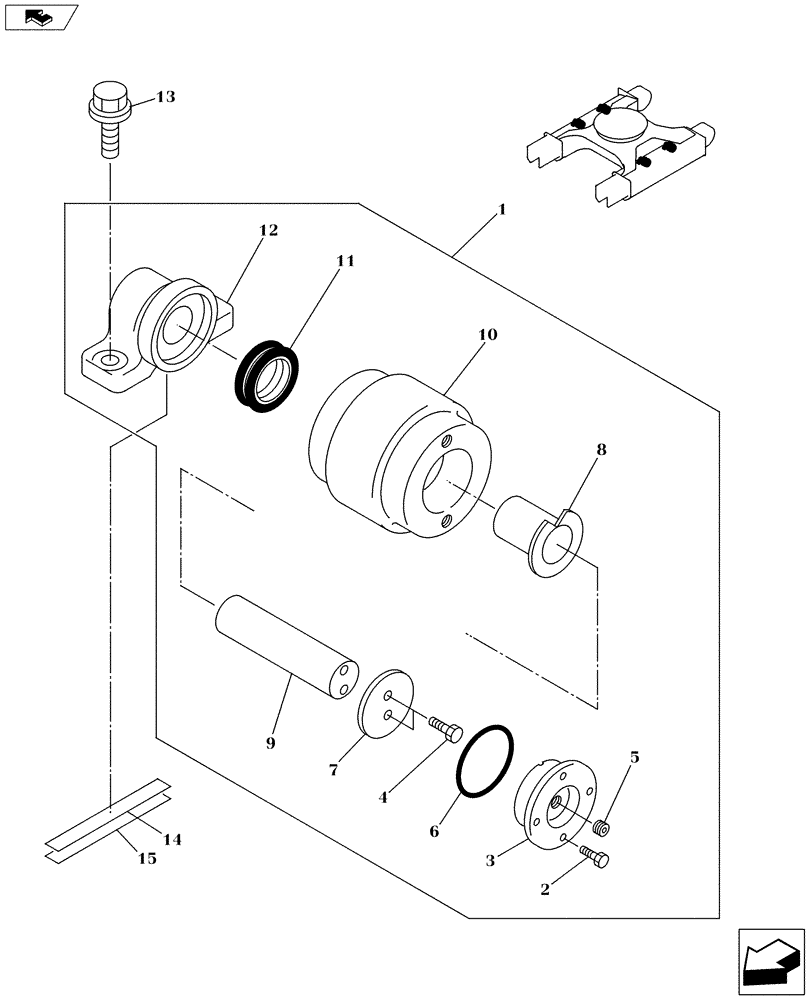

Запчасти Case CX130C (48.138.AB[02]) - UPPER ROLLER (48) - TRACKS & TRACK SUSPENSION

1

KMA1275

ROLLER ASSY.

4шт.

2

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

16шт.

3

KMA1278

COVER

4шт.

4

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

8шт.

5

150821A1

PLUG

4шт.

6

154657A1

O-RING

4шт.

7

KMA1285

PLATE

4шт.

8

KMA1270

BUSHING

4шт.

9

KMA1277

SPINDLE

4шт.

10

KMA1276

SHIFTER ROLLER

4шт.

11

KHA0038

SEAL

4шт.

12

KMA1279

CASING, BEARING ROLL

4шт.

13

166348A1

BOLT

8шт.
