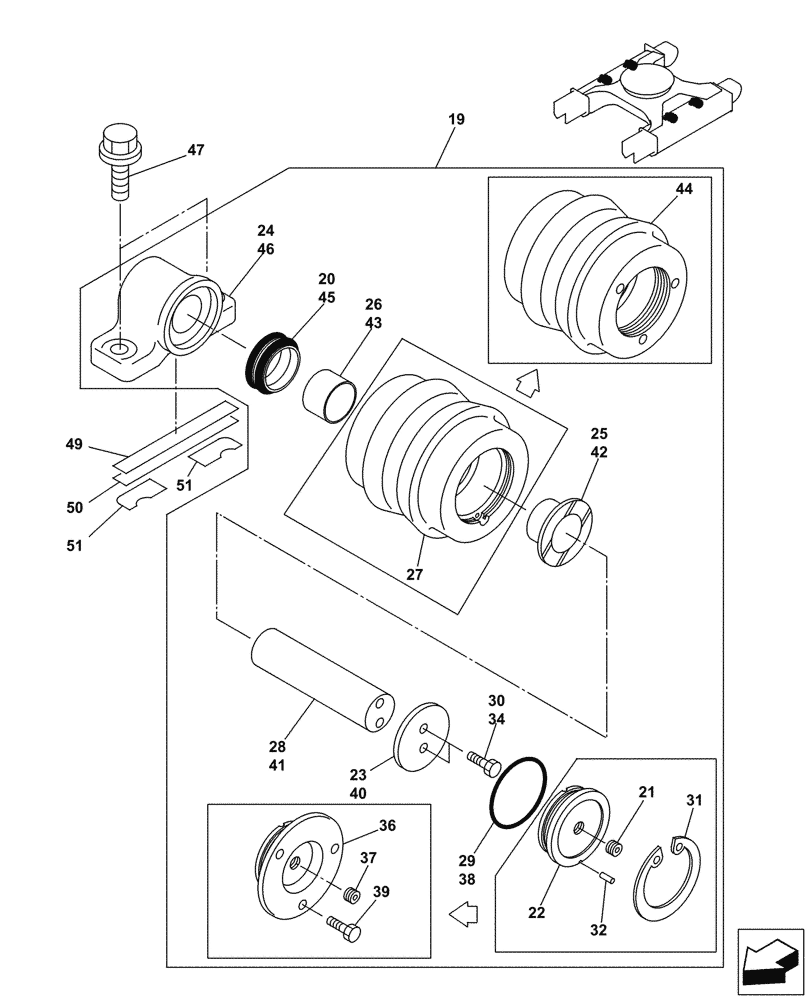

Запчасти Case CX130C (48.138.AB[01A]) - UPPER ROLLER (48) - TRACKS & TRACK SUSPENSION

19

KRA13750

TRACK ROLLER

4шт.

20

159399A1

SEAL,56mm ID x 76mm OD x 25mm Thk

4шт.

21

150821A1

PLUG

4шт.

22

161709A1

COVER

4шт.

23

159685A1

PLATE, THRUST

4шт.

24

161713A1

CASING, BEARING ROLL

4шт.

25

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

4шт.

26

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

4шт.

27

161708A1

TRACK ROLLER

4шт.

28

159692A1

WHEEL SHAFT

4шт.

29

150200A1

O-RING

4шт.

30

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

8шт.

31

800-2185

SNAP RING,M85 x 3, Int

4шт.

32

738-1312

LOCK PIN,M3 x 12, Slotted

4шт.

36

KRA1719

COVER

4шт.

37

150821A1

PLUG

4шт.

38

150200A1

O-RING

4шт.

39

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

40

159685A1

PLATE, THRUST

4шт.

41

159692A1

WHEEL SHAFT

4шт.

42

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

4шт.

43

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

4шт.

44

KRA1718

TRACK ROLLER,140mm OD x 156mm W

4шт.

45

159399A1

SEAL,56mm ID x 76mm OD x 25mm Thk

4шт.

34

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

8шт.

46

KRA13740

CASING, BEARING ROLL

4шт.

47

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

8шт.

49

150009A1

SHIM

4шт.

50

162197A1

SHIM

4шт.

51

KRA17190

SHIM

8шт.
