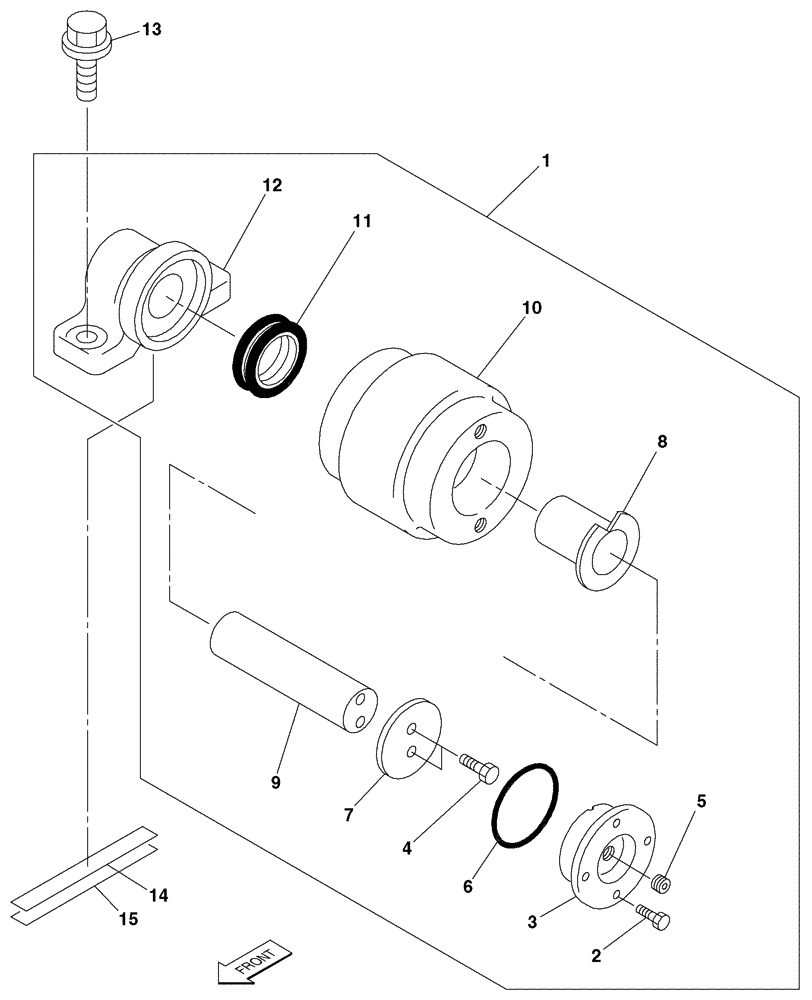

Запчасти Case CX130C (48.138.AB[01]) - TRACK ROLLER - UPPER (48) - TRACKS & TRACK SUSPENSION

1

KMA1275

ROLLER ASSY.

Incl 2 - 12

2шт.

2

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

4шт.

3

KMA1278

COVER

1шт.

4

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

5

150821A1

PLUG

1шт.

6

154657A1

O-RING

1шт.

7

KMA1285

PLATE

1шт.

8

KMA1270

BUSHING

1шт.

9

KMA1277

SPINDLE

1шт.

10

KMA1276

SHIFTER ROLLER

1шт.

11

KHA0038

SEAL

1шт.

12

KMA1279

CASING, BEARING ROLL

1шт.

13

166348A1

BOLT

M16 x 45

4шт.

14

160672A1

SHIM

1шт.

15

163144A1

SHIM

1шт.
