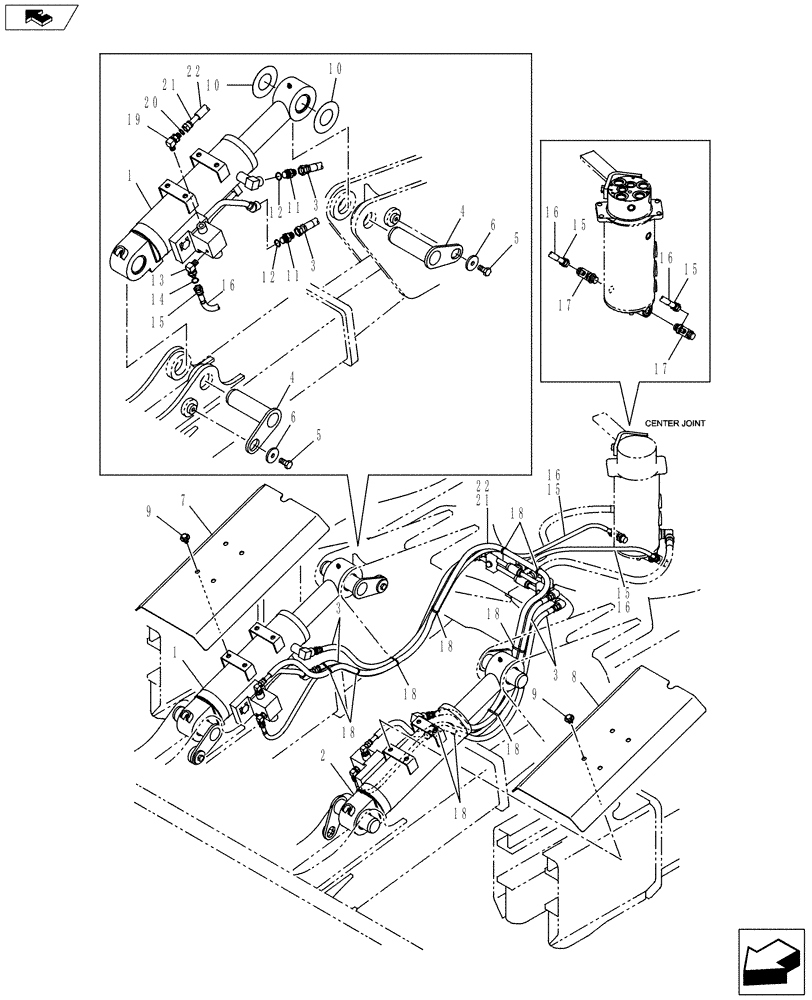

Запчасти Case CX130C (35.741.AJ[04]) - BLADE CYLINDER LINE - HBCV (35) - HYDRAULIC SYSTEMS

1

KMV18510

HYDRAULIC CYLINDER

1шт.

1

KMV18510R

REMAN-HYD CYLINDER

Reman For New P/N KMV18510

1шт.

1

KMV18510C

CORE-HYD CYLINDER

Return Number

1шт.

2

KMV18520

HYDRAULIC CYLINDER

1шт.

2

KMV18520R

REMAN-HYD CYLINDER

Reman For New P/N KMV18520

1шт.

2

KMV18520C

CORE-HYD CYLINDER

Return Number

1шт.

3

KMV18680

HYDRAULIC HOSE

4шт.

4

KMV15670

PIN

4шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

6

157141A1

WASHER

1шт.

7

KMV18660

COVER

1шт.

8

KMV18670

COVER

1шт.

9

167893A1

BOLT

8шт.

10

KAV0395

SHIM

4шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

12

154475A1

O-RING

4шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

15

159004A1

HOSE

2шт.

16

151942A1

PLASTIC-RUBBER TUBE

2шт.

17

KHJ19970

TEE

2шт.

18

150067A1

MOUNTING CLIP

7шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

21

169252A1

HYDRAULIC HOSE,6.30 mm ID x 3000.00 mm

1шт.

22

169253A1

HYD TUBE

1шт.
