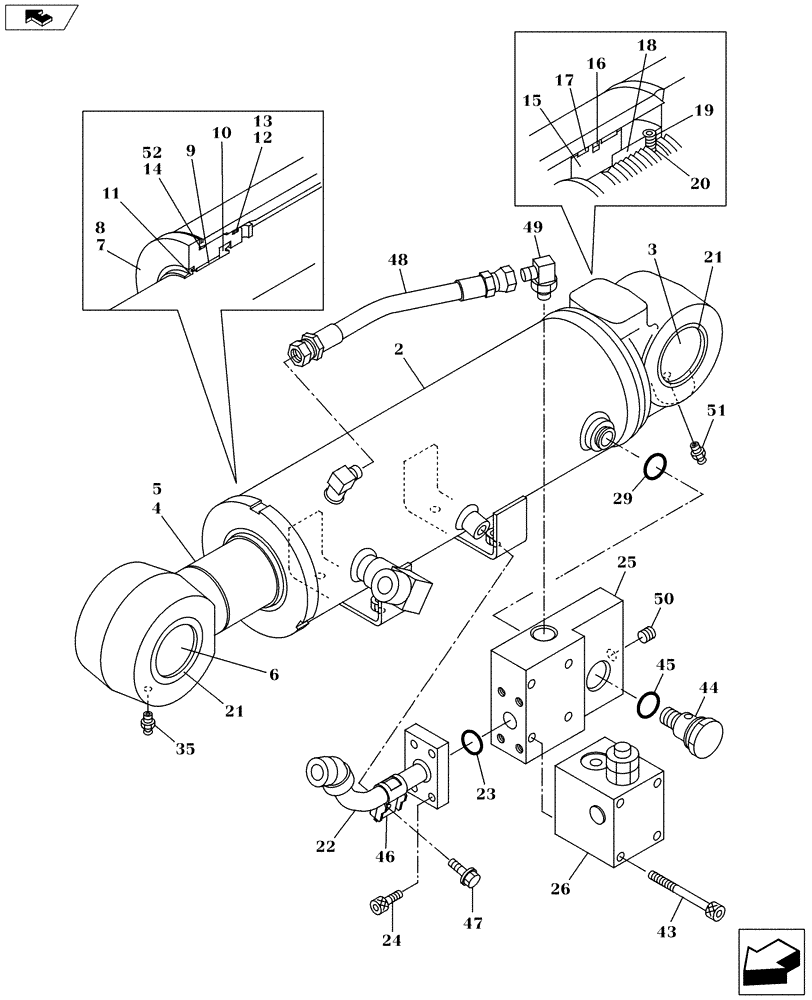

Запчасти Case CX130C (35.741.AA[02]) - BLADE CYLINDER - RH, HBCV (35) - HYDRAULIC SYSTEMS

1

LZ011490

TUBE

Tube Cylinder, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Cylinder, Incl in 1

1шт.

3

LB00686

BUSHING

1шт.

4

LZ011500

PISTON ROD

Piston Rod, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Piston Rod, Incl in 4

1шт.

6

LB00686

BUSHING

1шт.

7

NSS

NOT SOLD SEPARAT

Cylinder Head, Incl in 1 of Figure 35.741.AA (04), Incl 8 - 9

1шт.

8

LU003040

CYLINDER END CAP

Head

1шт.

9

LB014900

BUSHING

Rod Bushing

1шт.

10

MBP0211

O-RING

1шт.

11

LE019410

RING

1шт.

12

154741A1

O-RING

1шт.

13

LE020320

RING

Back-up Ring

1шт.

14

LE020330

O-RING

O-ring

1шт.

15

LJ019450

PISTON

Piston

1шт.

16

160824A1

SEALING RING

1шт.

17

LE00703

RING

2шт.

18

LA00773

SPECIAL NUT

1шт.

19

156223A1

SET SCREW

1шт.

20

155977A1

BALL

1шт.

21

KHV0260

WIPER SEAL

4шт.

22

LK006530

PIPE

Pipe

1шт.

23

154499A1

O-RING

1шт.

24

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

25

LR00929

PLATE

1шт.

26

LJ00990

SAFETY VALVE

1шт.

27

NSS

NOT SOLD SEPARAT

Incl in 1 of Figure 35.741.AA (04)

1шт.

28

NSS

NOT SOLD SEPARAT

Incl in 1 of Figure 35.741.AA (04)

1шт.

29

169204A1

O-RING

1шт.

30

NSS

NOT SOLD SEPARAT

Incl in 1 of Figure 35.741.AA (04)

1шт.

31

NSS

NOT SOLD SEPARAT

Incl in 1 of Figure 35.741.AA (04)

1шт.

32

154491A1

O-RING

1шт.

33

NSS

NOT SOLD SEPARAT

Incl in 1 of Figure 35.741.AA (04)

1шт.

34

NSS

NOT SOLD SEPARAT

Incl in 1 of Figure 35.741.AA (04)

1шт.

35

154475A1

O-RING

1шт.

36

LK00195

PLUG

1шт.

37

154459A1

O-RING

4шт.

38

163367A1

PLUG

2шт.

39

LJ018640

VALVE PRESSURE RELIE

Relief Valve

1шт.

40

169213A1

ORIFICE

1шт.

41

LK00328

PLUG

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

M8 X 80 HSHD CAP CL12.9 PHC

1шт.

43

863-8080

HEX SOC SCREW,M8 x 80mm, Cl 12.9

4шт.

44

LK00352

PLUG

1шт.

45

155095A1

O-RING

2шт.

46

LS00209

COLLAR

1шт.

47

LA00789

BOLT,Spcl

1шт.

48

LK006540

HOSE

Hose

1шт.

49

LK00402

FITTING

1шт.

50

TLU0003

PLUG

1шт.

51

153630A1

LUBE NIPPLE

1шт.

52

LZ011480

SEAL KIT

Repair Kit, Incl 10 - 14, 16 - 17

1шт.
