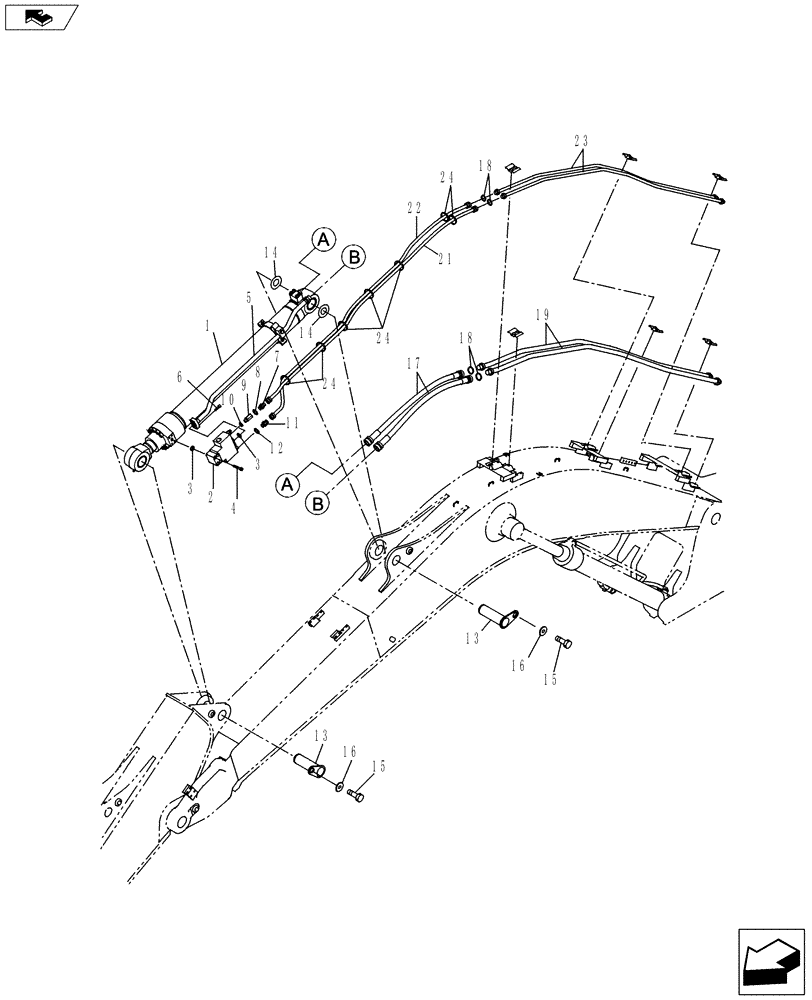

Запчасти Case CX130C (35.737.AE[03]) - DIPPER CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

KNV16290

HYDRAULIC CYLINDER

1шт.

2

KRV11110

VALVE SECTION

1шт.

3

155210A1

O-RING

2шт.

4

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

5

KNV14720

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

152747A1

ADAPTER

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

162525A1

STUD

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

12

154475A1

O-RING

1шт.

13

KNV13440

PIN

2шт.

14

160735A1

ADJUSTING PLATE

2шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

16

157141A1

WASHER

2шт.

17

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

2шт.

18

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

19

KNV16790

HYD TUBE

2шт.

20

NSS

NOT SOLD SEPARAT

Hose Set, Incl in KG0NV929, Incl 21 - 22

1шт.

21

KHJ16830

HYDRAULIC HOSE

1шт.

22

KHJ16830

HYDRAULIC HOSE

1шт.

23

KNV16920

HYD TUBE

2шт.

24

150067A1

MOUNTING CLIP

7шт.
