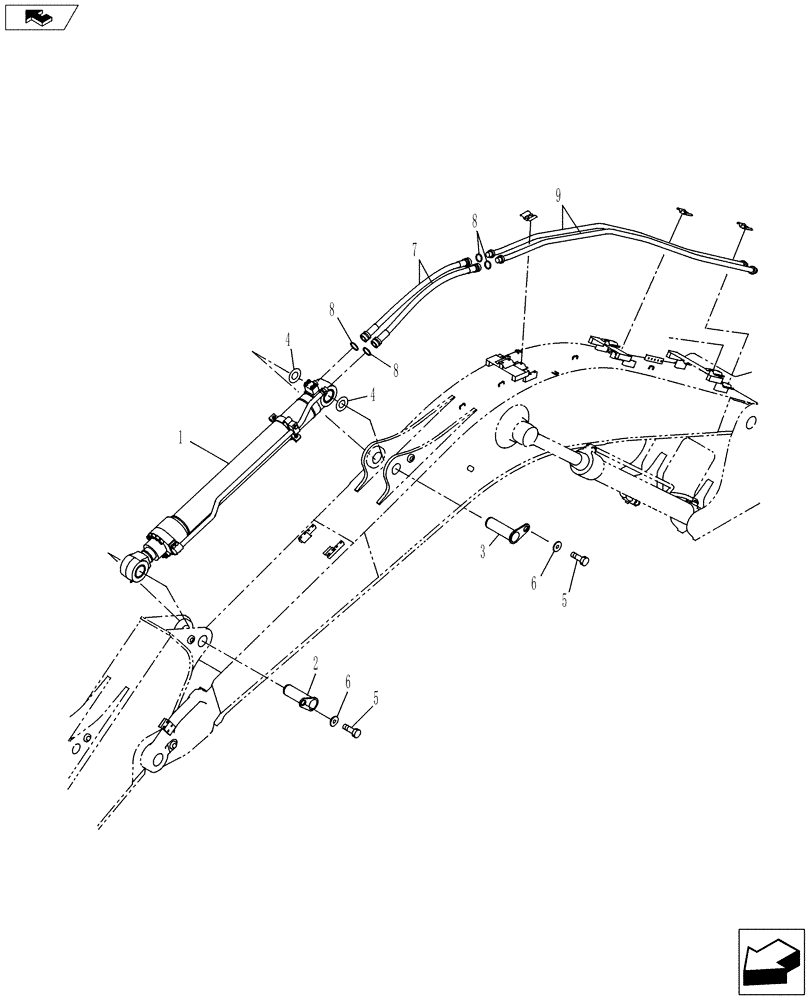

Запчасти Case CX130C (35.737.AE[02]) - DIPPER CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

KNV14350

HYDRAULIC CYLINDER

1шт.

1

KNV14350R

REMAN-HYD CYLINDER

CX130C CRAWLER EXCAVATOR TIER 4 (NA) (4/12-)

1шт.

1

KNV14350C

CORE-HYD CYLINDER

Return Number

1шт.

2

KNV17621

PIN

1шт.

3

KNV13440

PIN

1шт.

4

160735A1

ADJUSTING PLATE

2шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

6

157141A1

WASHER

2шт.

7

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

2шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

9

KNV16790

HYD TUBE

2шт.
