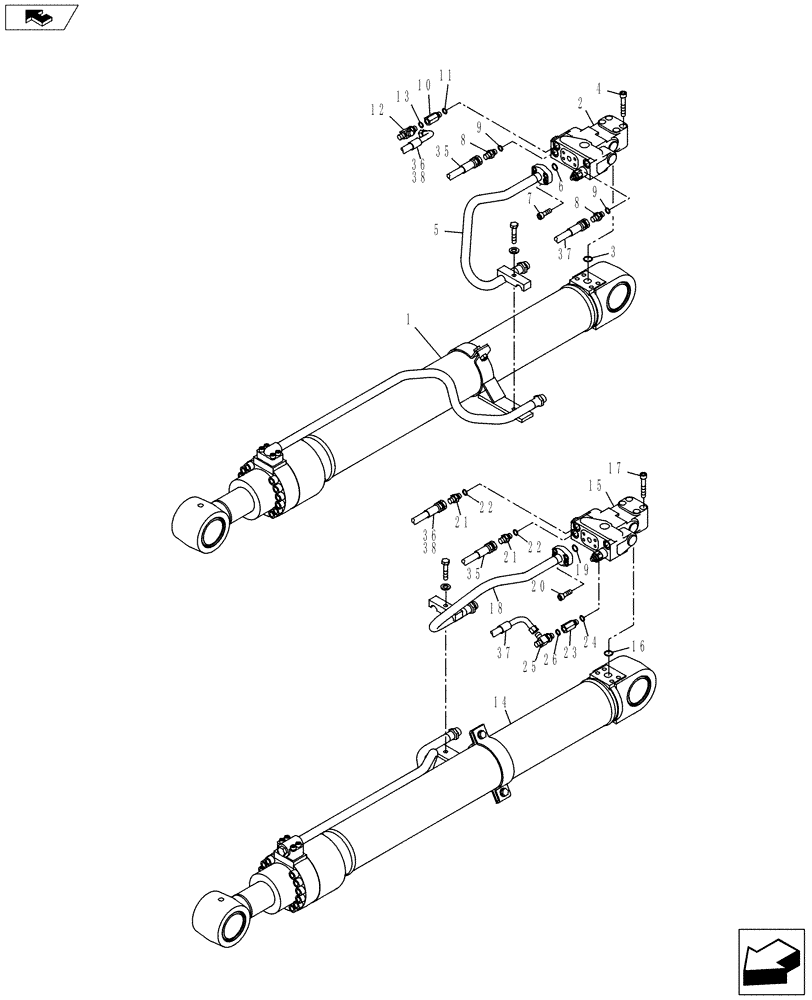

Запчасти Case CX130C (35.736.AC[05]) - BOOM CYLINDER LINES KYB (35) - HYDRAULIC SYSTEMS

1

KNV16250

HYDRAULIC CYLINDER

1шт.

1

KNV16250R

REMAN-HYD CYLINDER

CX130C CRAWLER EXCAVATOR, TIER 4 (NA) (4/12-)

1шт.

1

KNV16250C

CORE-HYD CYLINDER

Return Number

1шт.

2

KNV12850

VALVE SECTION

1шт.

3

155210A1

O-RING

1шт.

4

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

5

KNV14670

HYD TUBE

1шт.

6

161096A1

O-RING

1шт.

7

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

10

162525A1

STUD

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

159497A1

TEE

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

KNV16270

HYDRAULIC CYLINDER

1шт.

14

KNV16270R

REMAN-HYD CYLINDER

CX130C CRAWLER EXCAVATOR, TIER 4 (NA) (4/12-)

1шт.

14

KNV16270C

CORE-HYD CYLINDER

Return Number

1шт.

15

KNV12850

VALVE SECTION

1шт.

16

155210A1

O-RING

1шт.

17

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

18

KNV14680

HYD TUBE

1шт.

19

161096A1

O-RING

1шт.

20

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

23

162525A1

STUD

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

159497A1

TEE

1шт.

35

KLV13680

HOSE ASSY.

1шт.

36

NSS

NOT SOLD SEPARAT

Hose Set, Incl in KG0NV928, Incl 37 - 38

1шт.

37

KHJ17070

HYDRAULIC HOSE

1шт.

38

KHJ17070

HYDRAULIC HOSE

1шт.
