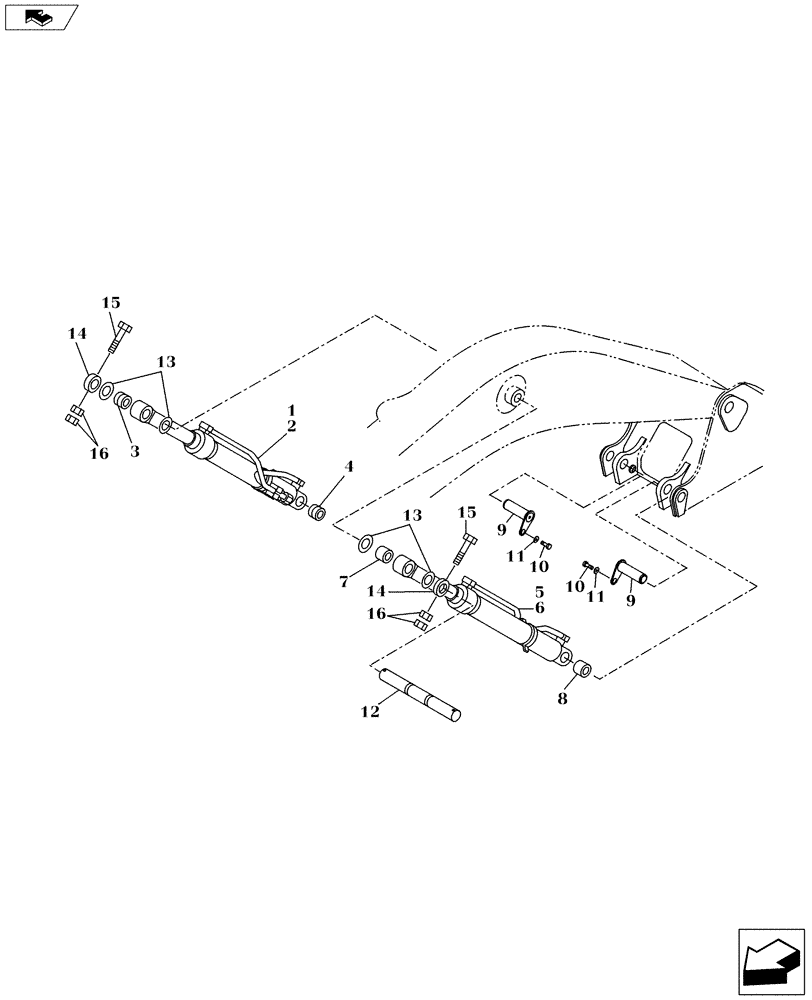

Запчасти Case CX130C (35.736.AC[03]) - BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

KNV14330

HYDRAULIC CYLINDER

1шт.

1

KNV14330R

REMAN-HYD CYLINDER

CX130C CRAWLER EXCAVATOR, TIER 4 (NA) (4/12-)

1шт.

1

KNV14330C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Boom Cylinder, Right, Incl in 1, Incl 3 - 4

1шт.

3

KNV1139

SELF LUB RING

1шт.

4

KNV1143

SELF LUB RING

1шт.

5

KNV14340

HYDRAULIC CYLINDER

1шт.

5

KNV14340R

REMAN-HYD CYLINDER

CX130C CRAWLER EXCAVATOR, TIER 4 (NA) (4/12-)

1шт.

5

KNV14340C

CORE-HYD CYLINDER

Return Number

1шт.

6

NSS

NOT SOLD SEPARAT

Boom Cylinder, Left, Incl in 5, Incl 7 - 8

1шт.

7

KNV1139

SELF LUB RING

1шт.

8

KNV1143

SELF LUB RING

1шт.

9

KNV13450

PIN

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

157141A1

WASHER

2шт.

12

169079A1

PIN

1шт.

13

160745A1

ADJUSTING PLATE

4шт.

14

KNV1247

RING, LOCKING

2шт.

15

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

2шт.

16

829-13416

NUT,M16 x 1.5, Cl 10

4шт.
