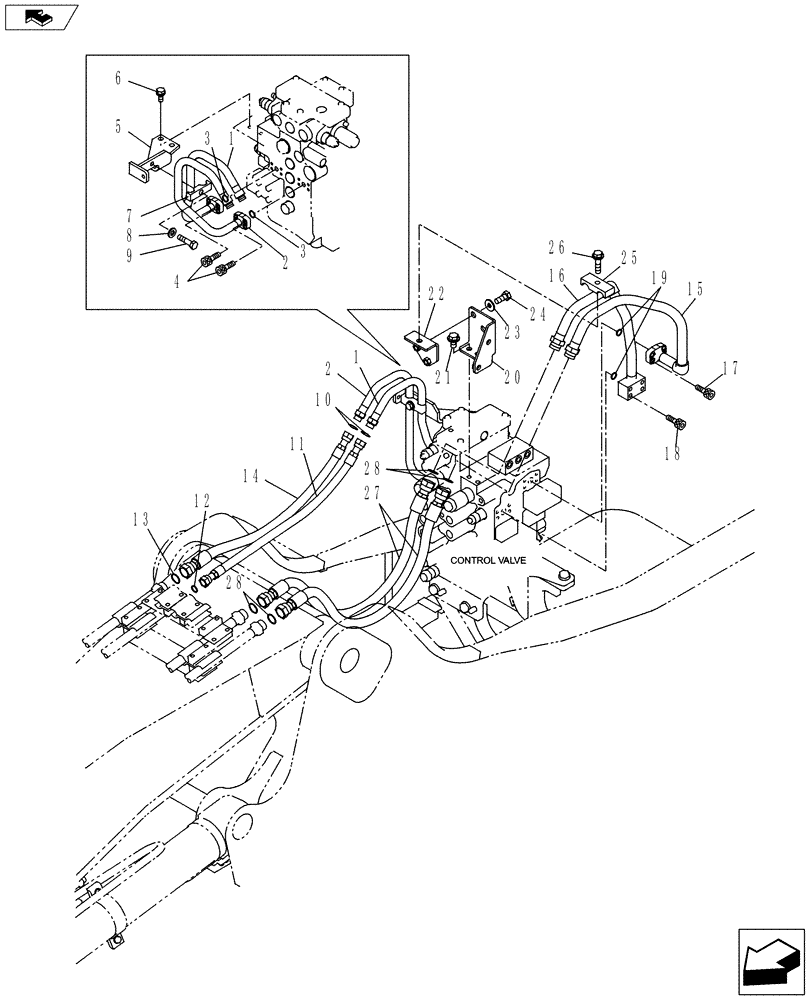

Запчасти Case CX130C (35.359.AE) - BUCKET AND ARM LINE (35) - HYDRAULIC SYSTEMS

1

KNJ12380

HYD TUBE

1шт.

2

KNJ15730

HYD TUBE

1шт.

3

161096A1

O-RING

2шт.

4

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

5

KNJ12400

SUPPORT

1шт.

6

166052A1

BOLT

2шт.

7

KMJ0835

PIPE CLAMP

1шт.

8

150811A1

WASHER

1шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

10

155204A1

O-RING

2шт.

11

KNJ15690

HYDRAULIC HOSE,860.00 mm

1шт.

12

155204A1

O-RING

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KNJ15700

HYDRAULIC HOSE,900.00 mm

1шт.

15

KNJ18060

HYD TUBE

1шт.

16

KNJ18070

HYD TUBE

1шт.

17

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

18

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

19

155210A1

O-RING

2шт.

20

KNJ18080

BRACKET

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

22

KNJ18090

BRACKET

1шт.

23

151161A1

WASHER

2шт.

24

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

25

152085A1

COLLAR

1шт.

26

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

27

KNJ18100

HYDRAULIC HOSE

2шт.

28

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
