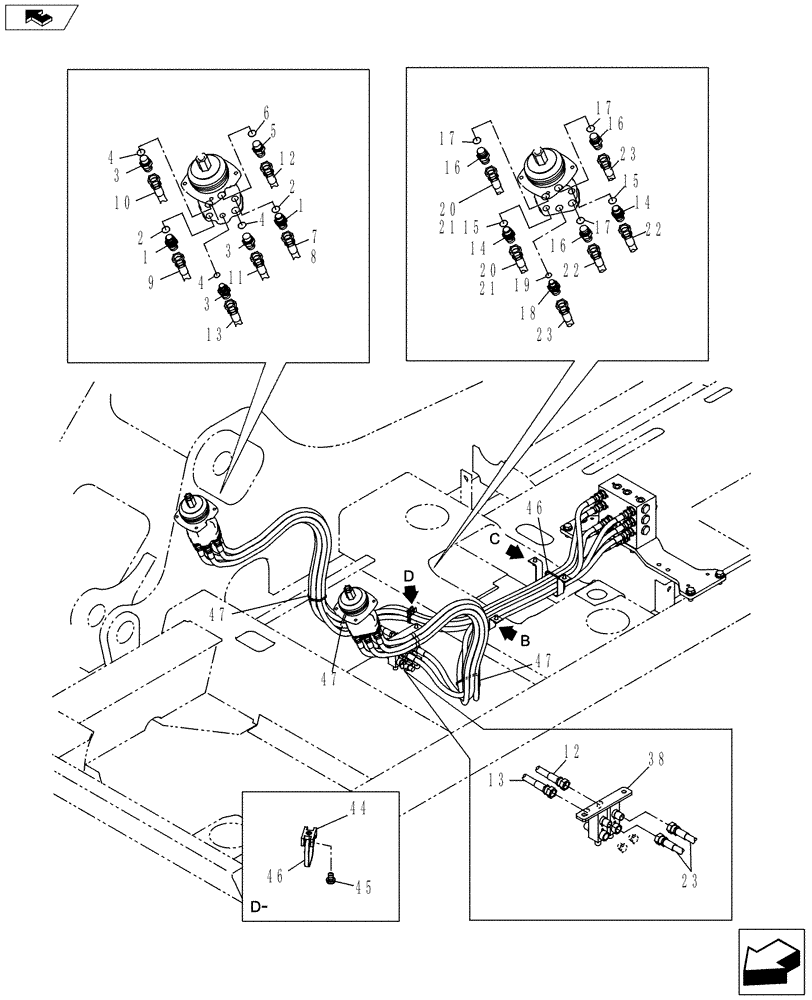

Запчасти Case CX130C (35.357.AK[02]) - PILOT CONTROL LINE (35) - HYDRAULIC SYSTEMS

1

KHJ1402

ADAPTER

Incl 2

2шт.

2

154475A1

O-RING

2шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl 4

3шт.

4

154475A1

O-RING

3шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

NSS

NOT SOLD SEPARAT

Hose Set, Incl in KG1NJ070, Incl 8 - 13

1шт.

8

159211A1

HYDRAULIC HOSE

1шт.

9

KHJ22430

HYDRAULIC HOSE

1шт.

10

159211A1

HYDRAULIC HOSE

1шт.

11

159211A1

HYDRAULIC HOSE

1шт.

12

159213A1

HYDRAULIC HOSE

1шт.

13

159213A1

HYDRAULIC HOSE

1шт.

14

KHJ1402

ADAPTER

Incl 15

2шт.

15

154475A1

O-RING

2шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl 17

3шт.

17

154475A1

O-RING

3шт.

18

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

NSS

NOT SOLD SEPARAT

Hose, Incl in KG1NJ070, Incl 21 - 23

1шт.

21

159217A1

HYDRAULIC HOSE

2шт.

22

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

23

159213A1

HYDRAULIC HOSE

2шт.

27

NSS

NOT SOLD SEPARAT

Hose, Incl in KG1NJ070

1шт.

28

KHJ2165

HOSE

1шт.

34

KHJ13810

HYDRAULIC HOSE,9.52 mm ID x 1150.00 mm

1шт.

38

KRJ27381

HYDRAULIC MANIFOLD

1шт.

44

150860A1

COLLAR

1шт.

45

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

46

150496A1

MOUNTING CLIP

2шт.

47

150498A1

MOUNTING CLIP

7шт.

71

NSS

NOT SOLD SEPARAT

Hose, Incl in KG1NJ070

1шт.

72

KHJ2010

HOSE

1шт.

75

KHJ2310

HOSE

1шт.

108

NSS

NOT SOLD SEPARAT

Hose, Incl in KG1NJ070

1шт.

109

KHJ2439

HOSE

1шт.

115

KHJ11540

HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm

1шт.
