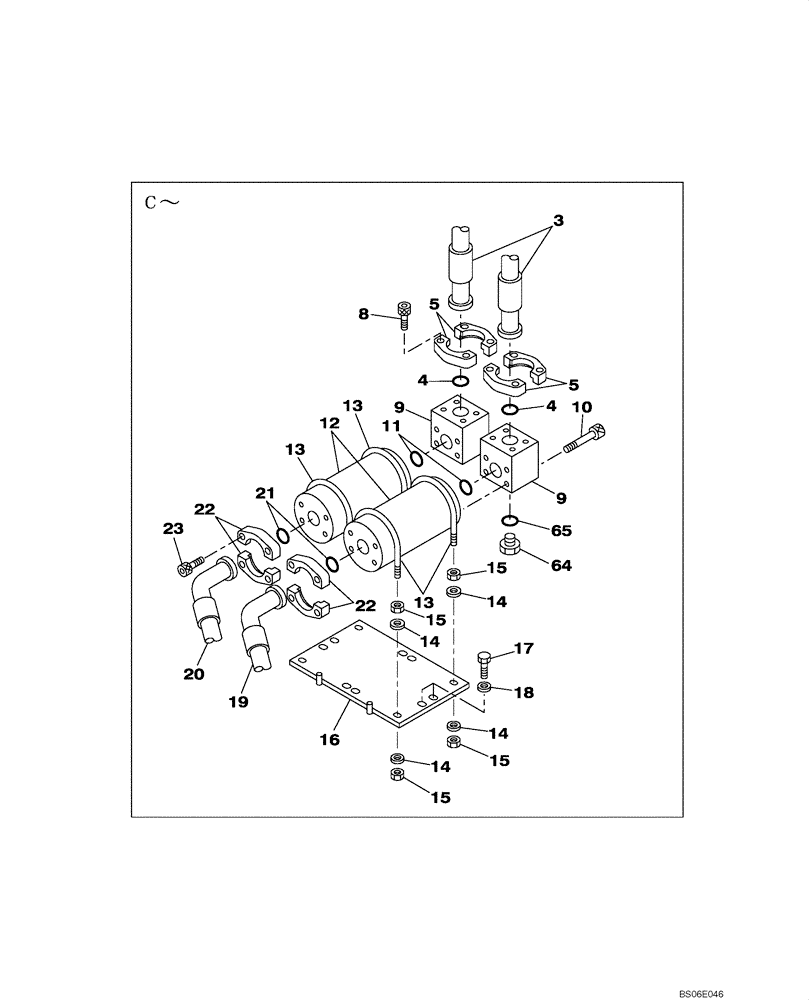

Запчасти Case CX800B (08-06) - HYDRAULIC CIRCUIT - CONTROL VALVE SUPPLY (08) - HYDRAULICS

3

KUJ10180

HYDRAULIC HOSE,31.80 mm ID x 1750.00 mm

See Figure 08-05, Ref 3

2шт.

4

164450A1

O-RING

2шт.

5

150124A1

FLANGE

4шт.

8

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

8шт.

9

KUJ10220

MANIFOLD VALVE

2шт.

10

108R014Y100R

BOLT

M14 x 100

8шт.

11

164450A1

O-RING

2шт.

12

KUJ0033

FILTER

2шт.

13

KUJ0039

U-BOLT

BOLT "U"

4шт.

14

150409A1

WASHER

W M10

16шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

16шт.

16

KUJ0352

BRACKET

1шт.

17

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

18

150811A1

WASHER

W 12

4шт.

19

KUJ10170

HYDRAULIC HOSE,31.80 mm ID x 2500.00 mm

See Figure 08-05, Ref 19

1шт.

20

KUJ10160

HYDRAULIC HOSE,31.80 mm ID x 1920.00 mm

See Figure 08-05, Ref 20

1шт.

21

164450A1

O-RING

2шт.

22

150124A1

FLANGE

4шт.

23

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

8шт.

64

152924A1

PLUG

Incl. 65; If Used

2шт.

65

154503A1

O-RING

1шт.
