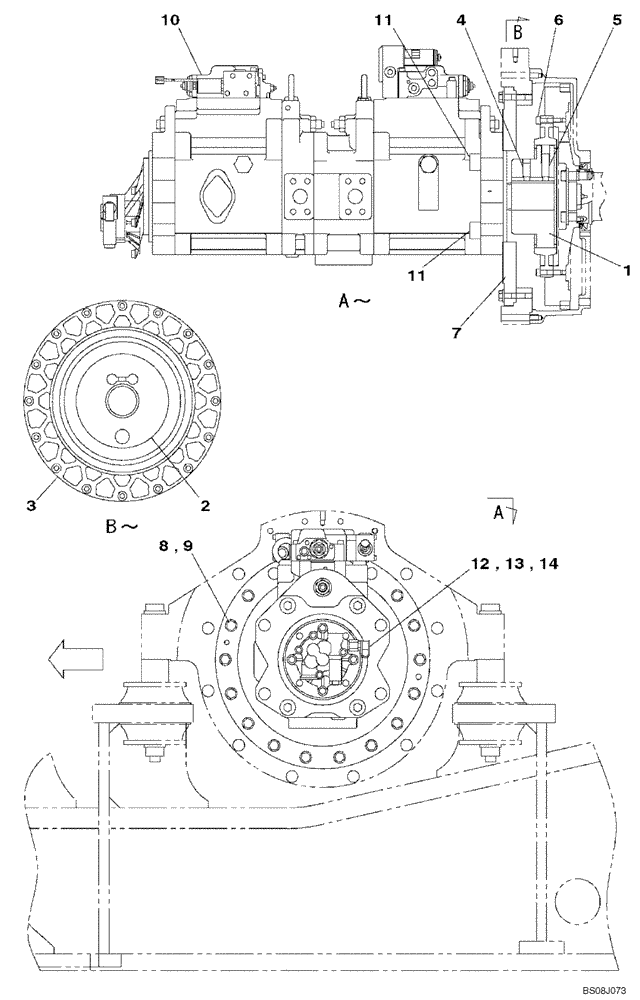

Запчасти Case CX800B (08-03) - HYDRAULIC PUMP - COUPLING (08) - HYDRAULICS

1

KWJ0021

COUPLING

1шт.

2

KWJ0061

HUB

1шт.

3

KWJ0062

FLANGE

1шт.

4

KWJ0063

HEX SOC SCREW

1шт.

5

KWJ11100

HEX SOC SCREW

1шт.

6

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

16шт.

7

KWJ10520

PLATE

1шт.

8

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

16шт.

9

150811A1

WASHER

W12

16шт.

10

KUJ11070

HYDRAULIC PUMP

See Figures 08-40 - 08-43, Serial Range: -N9SAU1106

1шт.

10

KUJ11071

HYDRAULIC PUMP

See Figures 08-40 - 08-43, Start Serial: N9SAU1107

1шт.

11

108R024Y080R

BOLT

4шт.

12

KHJ2620

BUSHING

Incl. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

1541849C1

COUPLING

1шт.
