Запчасти Case CX800B (06-08) - HYDRAULICS - TRAVEL CONTROL, SINGLE PEDAL (06) - POWER TRAIN

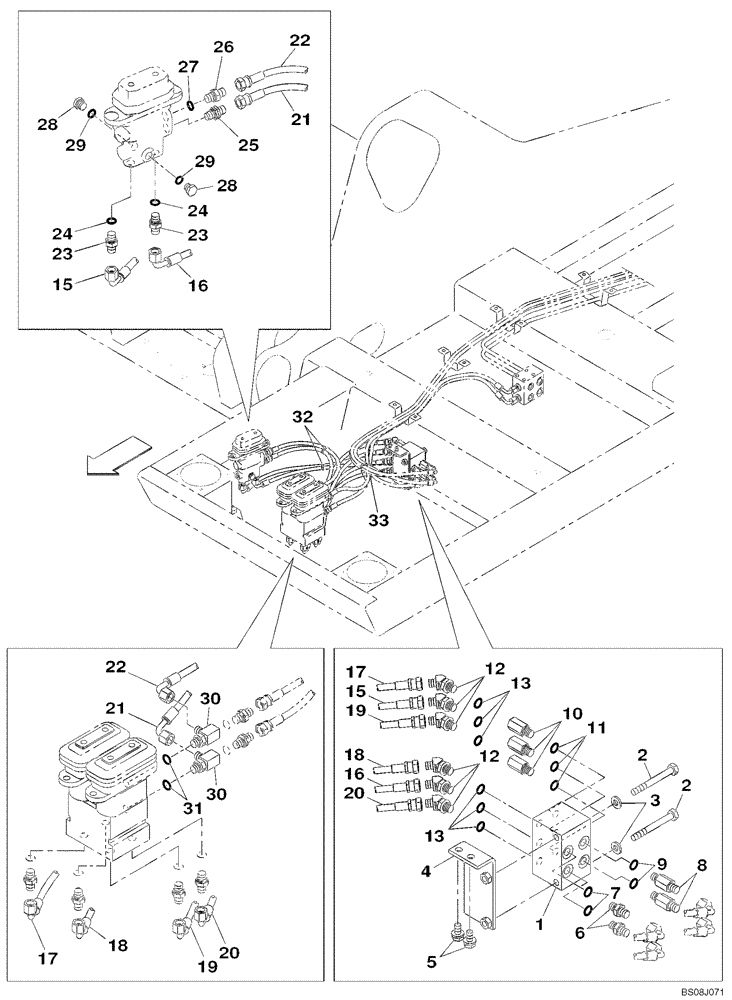

Схема запчастей Case CX800B - (06-08) - HYDRAULICS - TRAVEL CONTROL, SINGLE PEDAL (06) - POWER TRAIN
12
16
25
7
13
24
19
3
17
19
1
23
18
10
13
28
21
16
22
30
15
8
27
28
30
31
22
9
2
24
5
21
33
23
20
4
12
6
32
26
20
11
18
29
29
2
15
17

Артикул

Название

Примечание

Количество

1

KHJ17130

VALVE SECTION

See Figure 08-90

1шт.

2

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

M10x90

2шт.

3

150409A1

WASHER

M10

2шт.

4

KBJ2886

BRACKET

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

M10x20

2шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

162554A1

FITTING

Incl. 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 11

3шт.

11

162525A1

STUD

3шт.

12

150933A1

ELBOW

6шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

15

KHJ2239

HOSE,520.00 mm

6x520

1шт.

16

KHJ2179

HOSE

6x450

1шт.

17

KHJ2181

HOSE

6x580

1шт.

18

KHJ2343

HOSE

6x480

1шт.

19

KHJ2181

HOSE

6x580

1шт.

20

KHJ2343

HOSE

6x480

1шт.

21

KHJ2180

HOSE,6.3mm ID x 500mm L

6x500

1шт.

22

KHJ2180

HOSE,6.3mm ID x 500mm L

6x500

1шт.

23

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 24

2шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

25

161841A1

HYD CONNECTOR

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

159002A1

PLUG

Incl. 29

2шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

30

KHJ2773

TEE

2шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

32

150496A1

MOUNTING CLIP

250 mm (10 in)

3шт.

33

150498A1

MOUNTING CLIP

300 mm

1шт.

Выбрано товаров: 32
