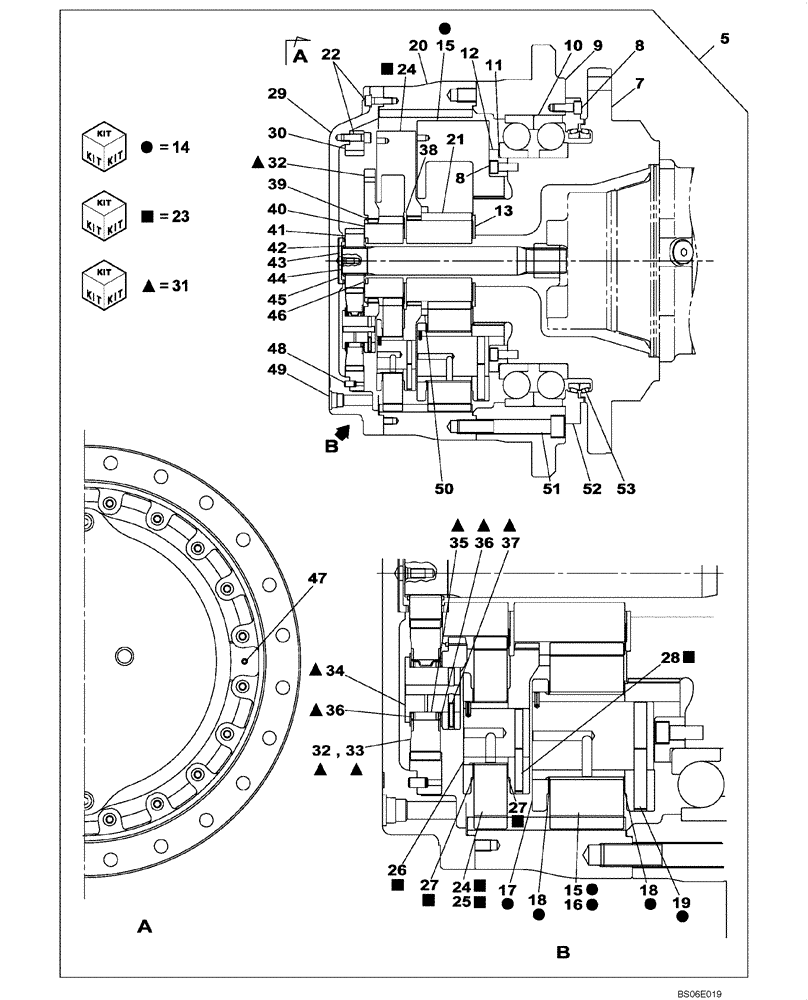

Запчасти Case CX800B (06-02) - TRAVEL REDUCTION GEAR (06) - POWER TRAIN

5

KUA10580

REDUCER

Incl. 7 - 53

1шт.

7

KUA10550

HOUSING

1шт.

8

862-14035

HEX SOC SCREW,M14 x 35mm, Cl 12.9

60шт.

9

KUA0016

BEARING HOUSING

1шт.

10

KUA0020

BEARING, BALL

2шт.

11

KUA0030

SHIM

1шт.

12

KUA10500

RETAINER CUP

1шт.

13

163918A1

PLATE

1шт.

14

KUA10570

GEAR SET

Incl. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

Carrier, Planetary

1шт.

16

NSS

NOT SOLD SEPARAT

Gear, Planetary

5шт.

17

NSS

NOT SOLD SEPARAT

Pin

5шт.

18

KUA0029

PLATE

10шт.

19

NSS

NOT SOLD SEPARAT

Pin, Spring

5шт.

20

KUA10060

RING GEAR

1шт.

21

KUA10290

SUN GEAR

1шт.

22

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

32шт.

23

KUA10330

GEAR SET

Incl. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

Carrier, Planetary

1шт.

25

NSS

NOT SOLD SEPARAT

Gear, Planetary

4шт.

26

NSS

NOT SOLD SEPARAT

Pin

4шт.

27

163922A1

PLATE

8шт.

28

NSS

NOT SOLD SEPARAT

Pin, Spring

4шт.

29

KUA10190

COVER

1шт.

30

KUA10050

RING GEAR

1шт.

31

KUA10320

GEAR SET

Incl. 32 - 37

1шт.

33

NSS

NOT SOLD SEPARAT

Gear, Planetary

3шт.

34

NSS

NOT SOLD SEPARAT

Pin

3шт.

35

NSS

NOT SOLD SEPARAT

Bearing, Needle

3шт.

36

NSS

NOT SOLD SEPARAT

Plate

6шт.

37

338W060Z025B

COTTER PIN

3шт.

38

KUA0026

PLATE, THRUST

1шт.

39

163924A1

RING

1шт.

40

KUA10260

SUN GEAR

1шт.

41

KUA10230

SUN GEAR

1шт.

42

800-1150

SNAP RING,M50, Ext

2шт.

43

KUA10510

THRUST PLATE

1шт.

44

KUA10220

GEAR SHAFT

1шт.

45

163929A1

SHIM

1шт.

46

163917A1

PLATE

1шт.

47

152K012Y025B

SET SCREW

M12 x 25

2шт.

48

151627A1

PIN

4шт.

49

150829A1

PLUG

3шт.

50

KUA0027

PLATE, THRUST

1шт.

51

108R024Y160R

BOLT

M24 x 160

30шт.

52

KUA10490

RETAINER

1шт.

53

KUA0022

PACKAGE

1шт.
