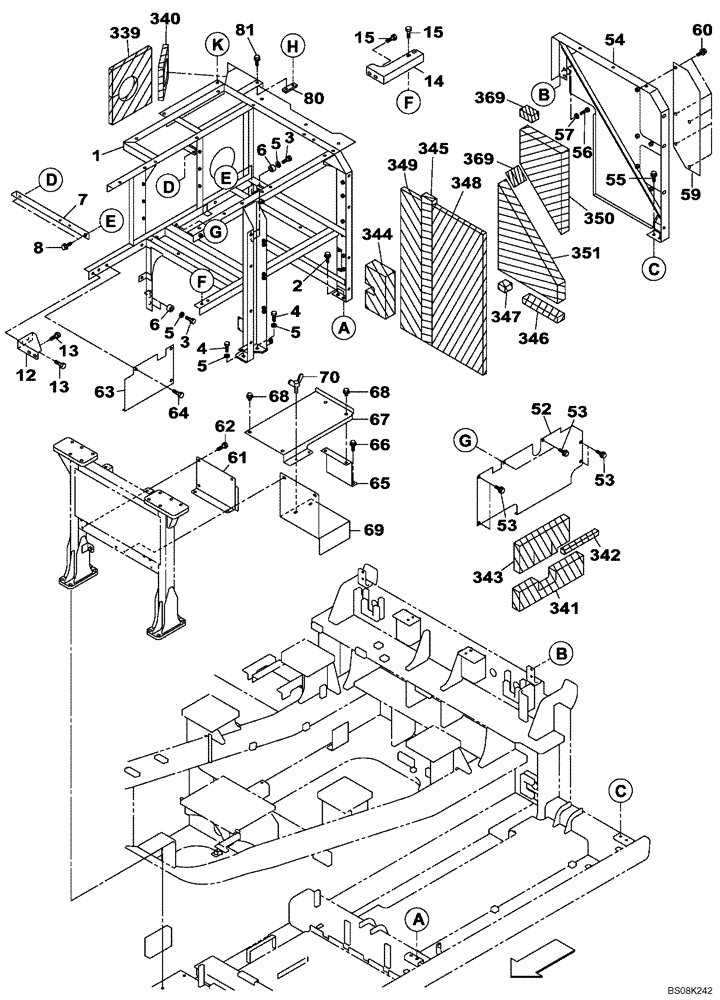

Запчасти Case CX800B (09-79) - COWLING - FRAMEWORK (09) - CHASSIS

1

KUN10670

SUPPORT ASSY.

1шт.

2

166352A1

BOLT

2шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

5

150811A1

WASHER

6шт.

6

KHN13750

SPACER

4шт.

7

KWN0037

FRAME

1шт.

8

166352A1

BOLT

2шт.

12

KWN10330

SUPPORT

1шт.

13

166352A1

BOLT

4шт.

14

KWN10480

SUPPORT

1шт.

15

166352A1

BOLT

4шт.

52

KUN10700

COVER

1шт.

53

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

54

KUN10360

FRAME

1шт.

55

166352A1

BOLT

2шт.

56

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

57

151161A1

WASHER

2шт.

59

KWN10120

PROTECTION PLATE

1шт.

60

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

61

KUN10710

COVER

1шт.

62

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

63

KUN10720

COVER

1шт.

64

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

65

KUN10730

BRACKET

1шт.

66

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

67

KUN10740

COVER

1шт.

68

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

69

KUN10750

COVER

1шт.

70

KHN17030

SPECIAL BOLT

4шт.

80

KWN0063

PLATE

1шт.

81

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

339

KWN0084

SEAL

1шт.

340

KUN10400

SEAL

1шт.

341

KUN10780

SEAL

1шт.

342

KUN10790

SEAL

1шт.

343

KUN10800

SEAL

1шт.

344

KWN0088

SEAL

1шт.

345

KWN0090

SEAL

1шт.

346

KWN0095

SEAL

1шт.

347

KWN0096

SEAL

1шт.

348

KWN0104

NOISE PROTECTION

1шт.

349

162441A1

NOISE PROTECTION

1шт.

350

KWN10100

NOISE PROTECTION

1шт.

351

KWN0106

NOISE PROTECTION

1шт.

369

KWN0093

SEAL

3шт.
