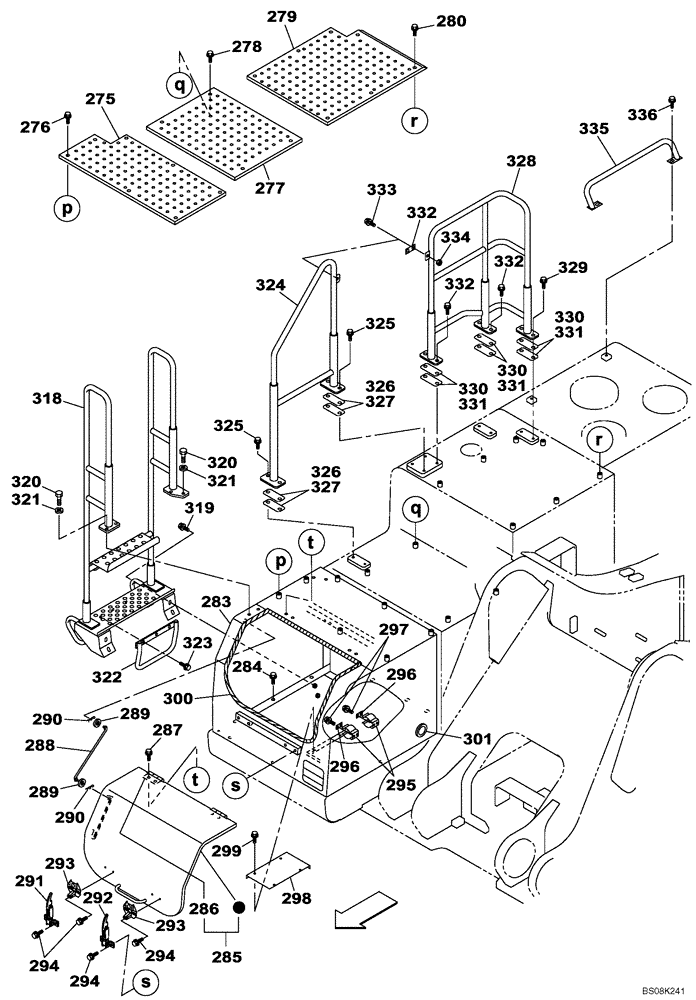

Запчасти Case CX800B (09-78) - COWLING FRONT RIGHT HAND-SIDE CABINET - GRAB RAIL (09) - CHASSIS

275

KWN10090B1

STEEL PLATE

1шт.

276

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

277

KWN0028B1

STEEL PLATE

1шт.

278

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

279

KWN10190B1

STEEL PLATE

1шт.

280

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

283

KWN10020Y2

COVER

1шт.

284

166352A1

BOLT

7шт.

285

KWN0011Y2

COVER

Incl. 286

1шт.

286

151104A1

HINGE

2шт.

287

166352A1

BOLT

4шт.

288

KWN0044

STAY

1шт.

289

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

290

153181A1

COTTER PIN

2шт.

291

151356A1

LOCK ASSY

1шт.

292

151361A1

HANDLE

1шт.

293

150785A1

STOP LOCK

2шт.

294

166350A1

BOLT

8шт.

295

152772A1

HOLDER

2шт.

296

KHN3548

PLATE

2шт.

297

166346A1

BOLT,Sems, M10

4шт.

298

KWN0125

COVER

1шт.

299

167518A1

BOLT

4шт.

300

KWN0118

GROMMET

1шт.

301

KRJ0188

GROMMET

1шт.

318

KWN0078Y2

GRAB RAIL

1шт.

319

166352A1

BOLT

4шт.

320

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

321

150811A1

WASHER

4шт.

322

KUB10220Y2

STEP

1шт.

323

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

324

KWN10250

HANDRAIL

1шт.

325

166352A1

BOLT

4шт.

326

KUN10200

ADJUSTING PLATE

1шт.

327

KUN10210

ADJUSTING PLATE

1шт.

328

KWN10260Y2

GRAB RAIL

1шт.

329

166352A1

BOLT

6шт.

330

KUN10200

ADJUSTING PLATE

1шт.

331

KUN10210

ADJUSTING PLATE

1шт.

332

KUN0245

PLATE

1шт.

333

166352A1

BOLT

2шт.

334

829-1412

NUT,M12, Cl 10.9

2шт.

335

KTN10720Y2

HANDRAIL

1шт.

336

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.
