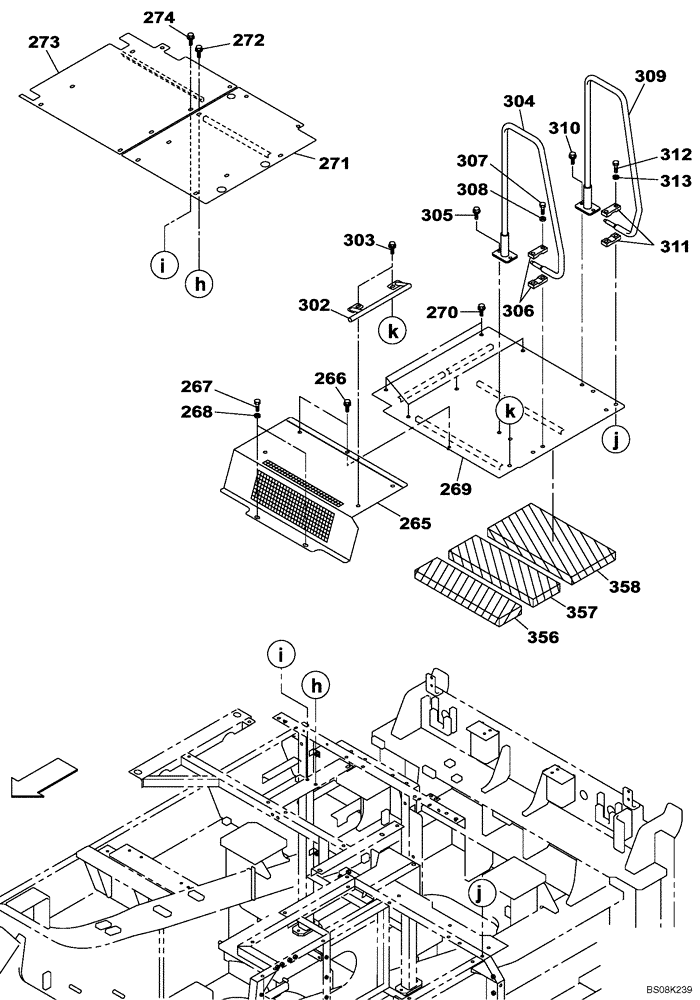

Запчасти Case CX800B (09-76) - COWLING - GRAB RAIL (09) - CHASSIS

265

KUN10760Y2

COVER

1шт.

266

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

267

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

268

151161A1

WASHER

2шт.

269

KWN0071Y2

COVER

1шт.

270

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

271

KUN10160Y2

COVER

1шт.

272

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

273

KUN10170Y2

COVER

1шт.

274

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

302

KUN10770

HANDRAIL

1шт.

303

166352A1

BOLT

2шт.

304

KWN0075Y2

GRAB RAIL

1шт.

305

166352A1

BOLT

2шт.

306

KHN3033

COLLAR

2шт.

307

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

308

150811A1

WASHER

2шт.

309

KWN0076Y2

GRAB RAIL

1шт.

310

166352A1

BOLT

2шт.

311

KHN3033

COLLAR

2шт.

312

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

313

150811A1

WASHER

2шт.

356

KWN0101

NOISE PROTECTION

1шт.

357

KWN0102

NOISE PROTECTION

1шт.

358

KWN0103

NOISE PROTECTION

1шт.
