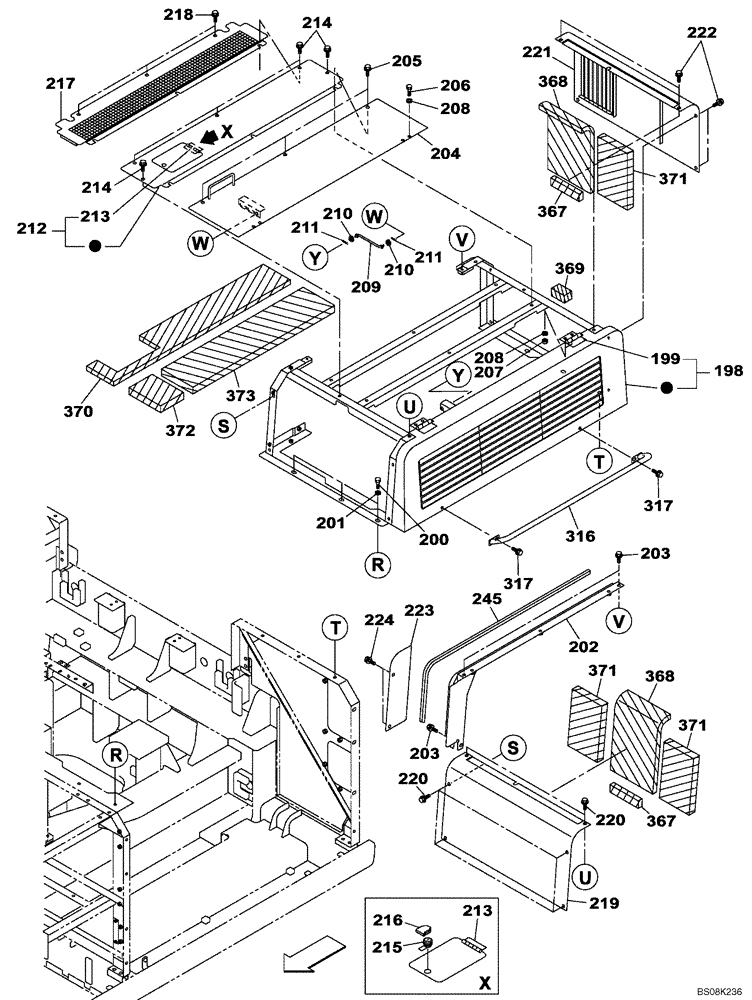

Запчасти Case CX800B (09-73) - COWLING - ENGINE COVER (09) - CHASSIS

198

KWN0012G1

ENGINE HOOD PANEL

Incl. 199

1шт.

199

159098A1

HINGE

2шт.

200

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

201

151161A1

WASHER

6шт.

202

KUN10100

FRAME

1шт.

203

166352A1

BOLT

3шт.

204

KWN0050G1

ENGINE HOOD PANEL

1шт.

205

166352A1

BOLT

3шт.

206

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

207

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

208

150409A1

WASHER

8шт.

209

159119A1

STAY

1шт.

210

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

211

153181A1

COTTER PIN

2шт.

212

KWN0051G1

ENGINE HOOD PANEL

Incl. 213

1шт.

213

162283A1

HINGE

1шт.

214

166352A1

BOLT

5шт.

215

KNN0469

LOCK

1шт.

216

KAN2497

CAP

1шт.

217

KUN10550G1

SIEVE

HOOD, ENGINE

1шт.

218

166352A1

BOLT

3шт.

219

KWN0048G1

ENGINE HOOD PANEL

1шт.

220

166352A1

BOLT

6шт.

221

KUN10560G1

ENGINE HOOD

HOOD, ENGINE

1шт.

222

166352A1

BOLT

6шт.

223

KUN10110G1

ENGINE HOOD PANEL

1шт.

224

166352A1

BOLT

2шт.

245

KRN2295

RUBBER SEAL

2шт.

316

KWN0077Y2

GRAB RAIL

1шт.

317

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

367

KWN0091

SEAL

2шт.

368

KWN0092

SEAL

2шт.

369

KWN0093

SEAL

3шт.

370

KWN0094

SEAL

1шт.

371

KWN0107

NOISE PROTECTION

3шт.

372

KWN0108

NOISE PROTECTION

1шт.

373

KWN0109

NOISE PROTECTION

1шт.
