Запчасти Case CX800B (09-72) - COWLING - FRAMEWORK (09) - CHASSIS

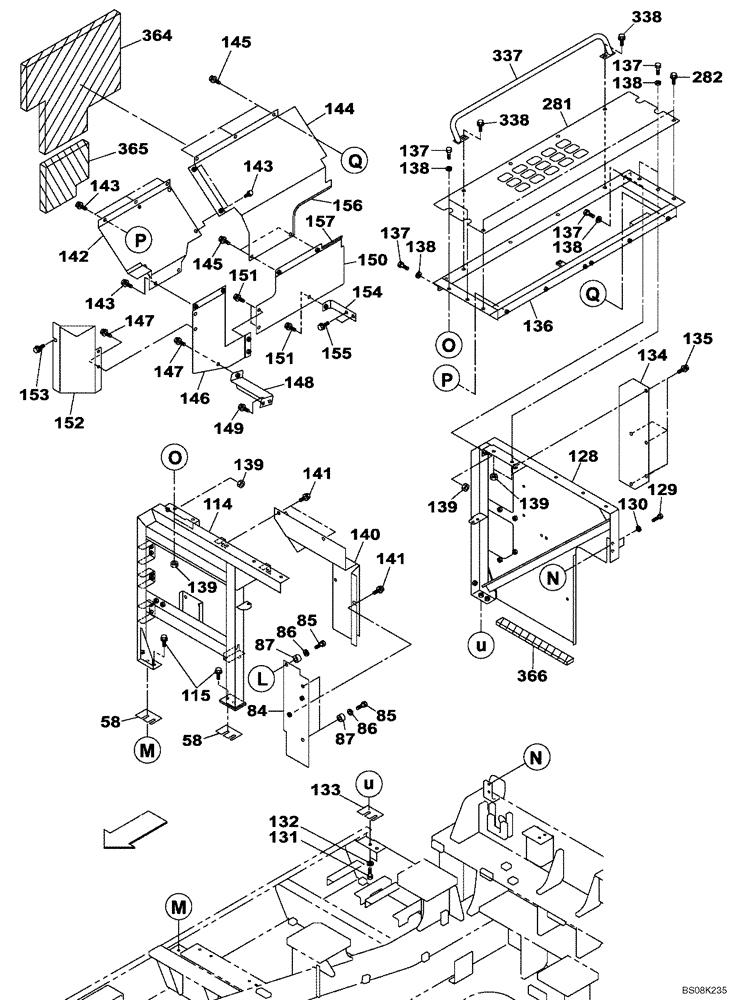

Схема запчастей Case CX800B - (09-72) - COWLING - FRAMEWORK (09) - CHASSIS
155
143
146
139
138
147
157
143
139
338
138
366
58
86
138
139
132
152
133
131
150
141
153
144
134
137
84
141
128
149
130
87
365
85
86
85
337
143
142
115
135
282
87
137
137
129
364
151
281
114
338
156
148
58
145
138
137
136
145
151
139
154
147
140

Артикул

Название

Примечание

Количество

58

KWN10180

ADJUSTING PLATE

2шт.

84

KWN0021

COVER

1шт.

85

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

86

150811A1

WASHER

3шт.

87

KHN13750

SPACER

3шт.

114

KUN10680

SUPPORT ASSY.

1шт.

115

166352A1

BOLT

4шт.

128

KUN10690

SUPPORT ASSY.

1шт.

129

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

130

151161A1

WASHER

2шт.

131

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

132

150811A1

WASHER

2шт.

133

KWN10180

ADJUSTING PLATE

2шт.

134

KWN10120

PROTECTION PLATE

1шт.

135

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

136

KUN10850

SUPPORT ASSY.

1шт.

137

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

138

150811A1

WASHER

6шт.

139

829-1412

NUT,M12, Cl 10.9

6шт.

140

KWN0022

COVER

1шт.

141

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

142

KUN10270

COVER

1шт.

143

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

144

KWN0024

COVER

1шт.

145

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

146

KUN10120

COVER

1шт.

147

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

148

KUN10290

SUPPORT

1шт.

149

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

150

KUN10870

COVER

1шт.

151

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

152

KWN10070

PROTECTION PLATE

1шт.

153

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

154

KWN0121

SUPPORT

1шт.

155

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

156

KHN2514

SEAL PROTECTION

1шт.

157

KHR2282

SEAL PROTECTION

1шт.

281

KUN10190Y2

COVER

1шт.

282

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

337

KWN0077Y2

GRAB RAIL

1шт.

338

166352A1

BOLT

2шт.

364

KWN0117

NOISE PROTECTION

1шт.

365

KWN0126

NOISE PROTECTION

1шт.

366

KHJ2554

SEAL

1шт.

Выбрано товаров: 44
