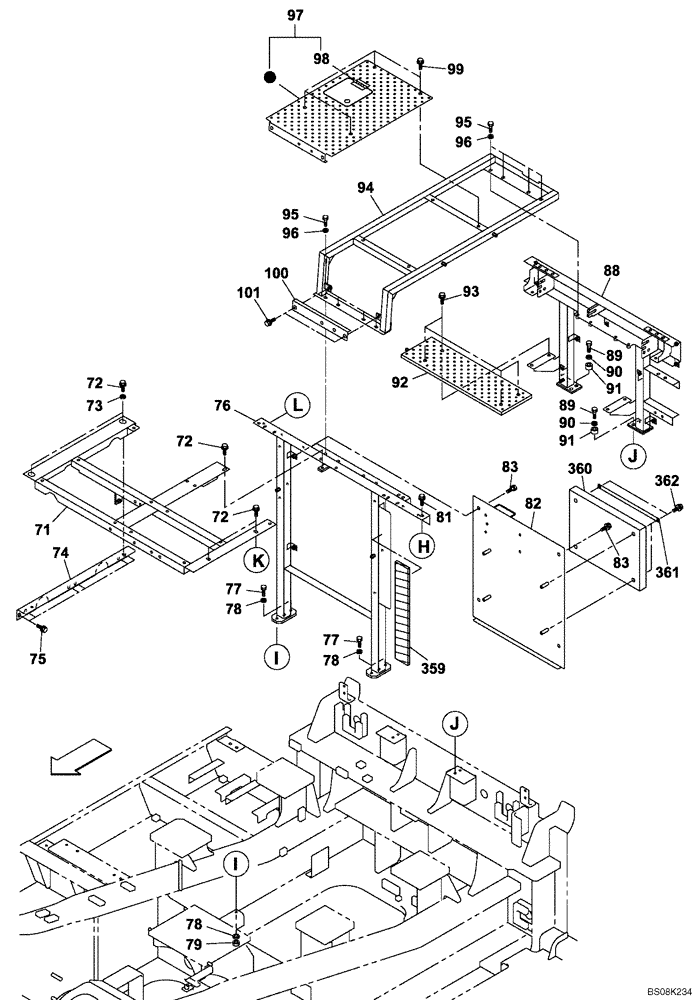

Запчасти Case CX800B (09-71) - COWLING - FRAMEWORK (09) - CHASSIS

71

KUN10320

FRAME

1шт.

72

166352A1

BOLT

5шт.

73

162409A1

WASHER

2шт.

74

KWN0062

SUPPORT

1шт.

75

166352A1

BOLT

6шт.

76

KUN10370

FRAME

1шт.

77

AES0399

BOLT,Full Thd

4шт.

78

150811A1

WASHER

8шт.

79

829-1412

NUT,M12, Cl 10.9

4шт.

81

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

82

KWN0065

PROTECTION PLATE

1шт.

83

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

88

KWN10230

FRAME

1шт.

89

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

90

150811A1

WASHER

4шт.

91

KHN13750

SPACER

4шт.

92

KWN0066

STEP

1шт.

93

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

94

KUN10340

FRAME

1шт.

95

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

96

150811A1

WASHER

8шт.

97

KUN10330

STEP

Incl. 98

1шт.

98

162283A1

HINGE

1шт.

99

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

100

KUN10620

BRACKET

BRACKET

1шт.

101

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

359

KWN0089

SEAL

1шт.

360

KWN0080

FOAM

1шт.

361

KWN0083

SEAL RETAINER

2шт.

362

166345A1

BOLT

4шт.
