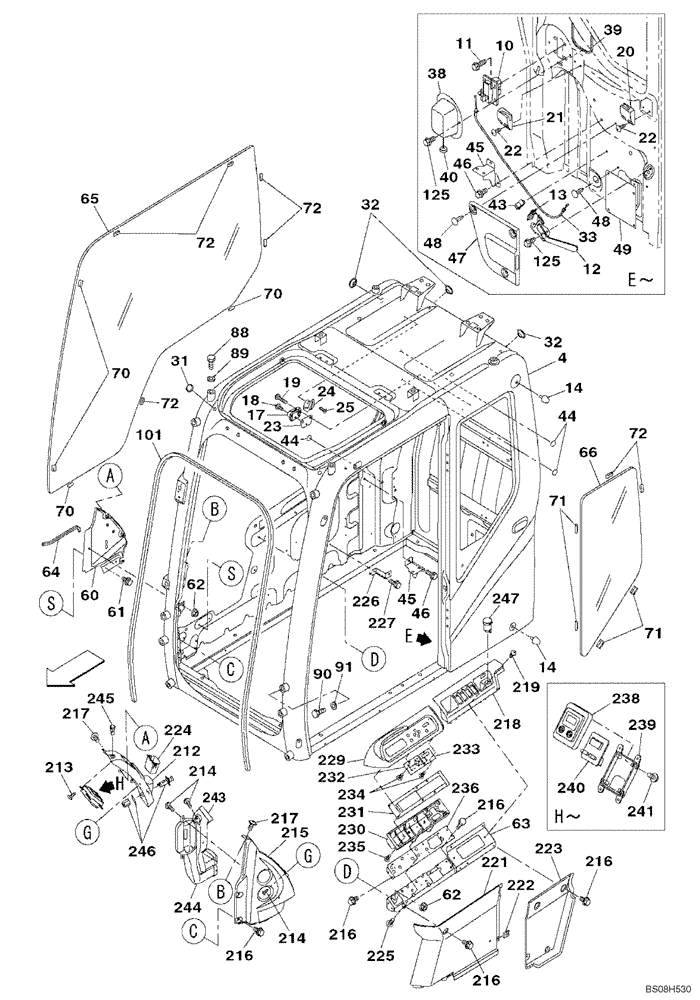

Запчасти Case CX800B (09-66) - CAB - SIDE GLASS AND ELECTRONIC CONTROL UNIT (09) - CHASSIS

KHN16500

CAB

Incl. 4 - 125; Also Includes Parts On Figures 04-11, 09-65 to 09-69 (Includes Door)

1шт.

KHN16490

CAB

Incl. 4 - 125; Also Includes Parts On Figures 04-11, Serial Range: 09-65-09-69

1шт.

4

KHN18670

CAB BODY

Replaces KHN16550

1шт.

10

161384A1

RH DOOR LOCK

1шт.

11

KHN18920

BOLT,Spcl, Hex

4шт.

12

KHN14170

LEVER

1шт.

13

KHN16400

SPRING

1шт.

14

KHN2704

STOP

2шт.

17

KHN14220

SUPPORT

1шт.

18

KHN2682

SCREW,Spcl

1шт.

19

KHN2681

SCREW

2шт.

20

KHN14230

SUPPORT

1шт.

21

KHN14240

SUPPORT

1шт.

22

KHN2768

SCREW,Spcl

4шт.

23

KHN2722

LEDGER PLATE

1шт.

24

KHN14250

HOOK

1шт.

25

KHN14260

SCREW

2шт.

31

KHN14300

GROMMET

1шт.

32

KHN14310

GROMMET

3шт.

33

KHN14320

BOWDEN CONTROL

1шт.

38

KHN2723

CAP ASSY.

1шт.

39

161385A1

SEAL

1шт.

40

161383A1

GROMMET

1шт.

43

161381A1

COLLAR

1шт.

44

KHN14350

RUBBER JOINT

3шт.

45

KHN14360

BRACKET

2шт.

46

KHN18860

BOLT,Spcl, Hex

4шт.

47

KHN14370

COVER

1шт.

48

KHN14380

CLIP

4шт.

49

KHN20260

SEAL

SEAL, Replaces KHN14390

1шт.

60

KHN14701

COVER

1шт.

61

KHN14710

BOLT,Spcl

2шт.

62

161453A1

FLANGE NUT

7шт.

63

KHN14730

BRACKET

1шт.

64

KHN18280

COVER

Replaces KHN16270

1шт.

65

KHN14890

CAB GLASS

1шт.

66

KHN14910

CAB GLASS

1шт.

70

KHN14970

SPACER

4шт.

71

KHN14980

SPACER

4шт.

72

KHN14990

SPACER

7шт.

88

KHN16280

BOLT,Spcl

4шт.

89

KHN16290

WASHER

4шт.

90

KHN16300

BOLT

8шт.

91

KHN16310

WASHER

8шт.

101

KHN15930

SEAL, GLASS

1шт.

125

KHN18880

BOLT

6шт.

212

KHN12870

PADDING

1шт.

213

KHN16120

SCREW

4шт.

214

KHN16130

SCREW

8шт.

215

KHN12070

PADDING

1шт.

216

KHN14710

BOLT,Spcl

15шт.

217

KHN16140

BOLT,Spcl

3шт.

218

KHN13780

PADDING

1шт.

219

KHN2682

SCREW,Spcl

2шт.

221

KHN12100

PADDING

1шт.

222

KHN16430

SPECIAL NUT

1шт.

223

KHN12120

PADDING

1шт.

224

KHN12880

HOUSING

1шт.

225

KHN16150

SCREW

6шт.

226

KHN16160

SUPPORT

1шт.

227

KHN2756

BOLT,Spcl

1шт.

KHR15202

INSTRUMENT CLUSTER

ELECTRONIC UNIT, CONTROL Incl. 229 - 235

1шт.

KHR15202R

REMAN-INSTR CLUSTER

CX800B CRAWLER EXCAVATOR TIER 3 (NA), ELECTRONIC UNIT, CONTROL (10/08-)

1шт.

KHR15202C

CORE-CLUSTER, INSTR

Return Number

1шт.

229

KHR15270

BOX

1шт.

230

KHR15230

BOX

1шт.

231

KHR15241

ECU

1шт.

232

KHR15250

PRINTED CIRCUIT BOAR

1шт.

233

KHR15260

PRINTED CIRCUIT BOAR

1шт.

234

KHR3213

SELF-TAP SCREW

9шт.

235

161859A1

SELF-TAP SCREW,M4 x 16mm

8шт.

236

KHR15170

SUPPORT

1шт.

KHR10060

CLOCK

Incl. 238 - 241

1шт.

238

KHR13810

BOX

1шт.

239

KHR13820

BOX

1шт.

240

KHR13830

PRINTED CIRCUIT BOAR

1шт.

241

KHR13840

SELF-TAP SCREW

4шт.

KHR13040

BOX

Incl. 243 - 245

1шт.

243

KHR13200

AIR DUCT

1шт.

244

KHR13230

AIR DUCT

1шт.

245

KHR10540

SENSOR

1шт.

246

KHR11210

CIGARETTE LIGHTER

1шт.

247

KHR2501

SOCKET

1шт.
