(09-41) - DECAL - OPERATORS COMPARTMENT

Запчасти Case CX800B (09-41) - DECAL - OPERATORS COMPARTMENT (09) - CHASSIS

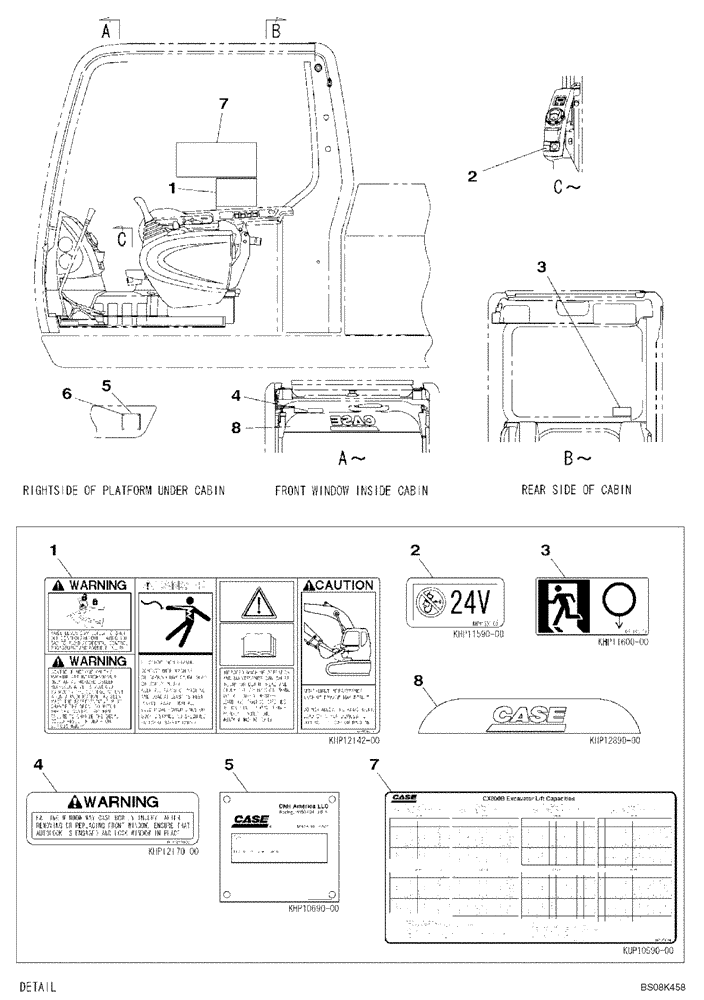

Схема запчастей Case CX800B - (09-41) - DECAL - OPERATORS COMPARTMENT (09) - CHASSIS
5
2
4
8
1
7
8
4
3
6
2
1
7
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP12142

DECAL

Warning, Danger, Caution

1шт.

2

KHP11590

DECAL

24 Volt

1шт.

3

KHP11600

DECAL

Right Side of Cab

1шт.

4

KHP12170

DECAL

Warning, Falling Window May Caused Bodily Injury

1шт.

5

NSS

NOT SOLD SEPARAT

NAME PLATE

1шт.

6

NSS

NOT SOLD SEPARAT

RIVET, Blind

4шт.

7

KUP10590

DECAL

DECAL, Lift Capacities

1шт.

8

KHP12890

DECAL

Case Logo

1шт.
