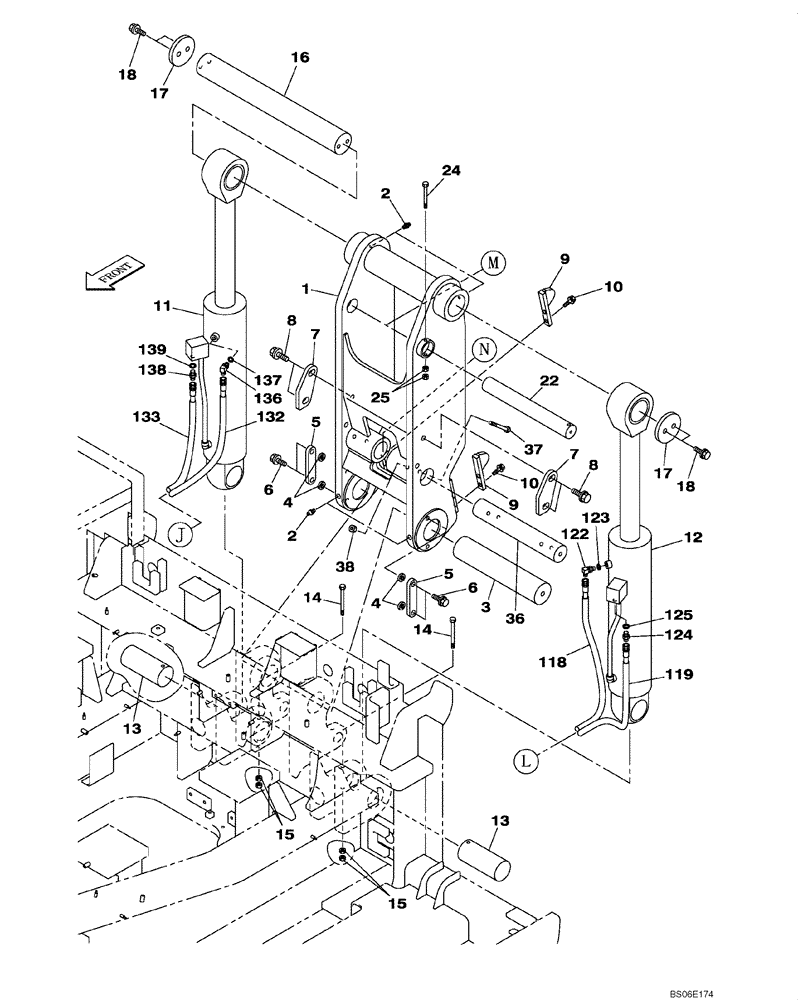

Запчасти Case CX800B (09-08) - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS

1

KUB0157

ARM

1шт.

2

153630A1

LUBE NIPPLE

4шт.

3

KUB0173

PIN

1шт.

4

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W16

4шт.

5

KUB0175

PLATE

2шт.

6

166348A1

BOLT

M16 x 45

4шт.

7

KUB0163

PLATE

2шт.

8

105R020Y050R

BOLT

M20 x 50

4шт.

9

KUB0162

PLATE

2шт.

10

166352A1

BOLT

M12 x 30

4шт.

11

KUB0154

HYDRAULIC CYLINDER

See Figure 08-52

1шт.

12

KUB0155

HYDRAULIC CYLINDER

See Figure 08-53

1шт.

13

KUB0177

PIN

2шт.

14

102R012Y150R

BOLT

M12 x 150

2шт.

15

829-1412

NUT,M12, Cl 10.9

4шт.

16

KUB0167

PIN

1шт.

17

KUB0168

PLATE

2шт.

18

166348A1

BOLT

M16 x 45

4шт.

22

KUB0169

PIN

1шт.

24

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

36

KUB0190

PIN

1шт.

37

102R012Y140R

BOLT

M12 x 140

2шт.

38

829-1412

NUT,M12, Cl 10.9

4шт.

118

KAJ3534

HYDRAULIC HOSE,9.50 mm ID x 1550.00 mm

1350 mm; See Figure 08-081-00 01

1шт.

119

167717A1

HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm

See Figure 08-081-00 01

1шт.

122

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 123

1шт.

123

154475A1

O-RING

1шт.

124

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 125

1шт.

125

154475A1

O-RING

1шт.

132

KHJ15350

HYDRAULIC HOSE

1800 mm; See Figure 08-081-00 01

1шт.

133

KHJ15340

HYDRAULIC HOSE

1600 mm; See Figure 08-081-00 01

1шт.

136

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 137

1шт.

137

154475A1

O-RING

1шт.

138

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 139

1шт.

139

154475A1

O-RING

1шт.
